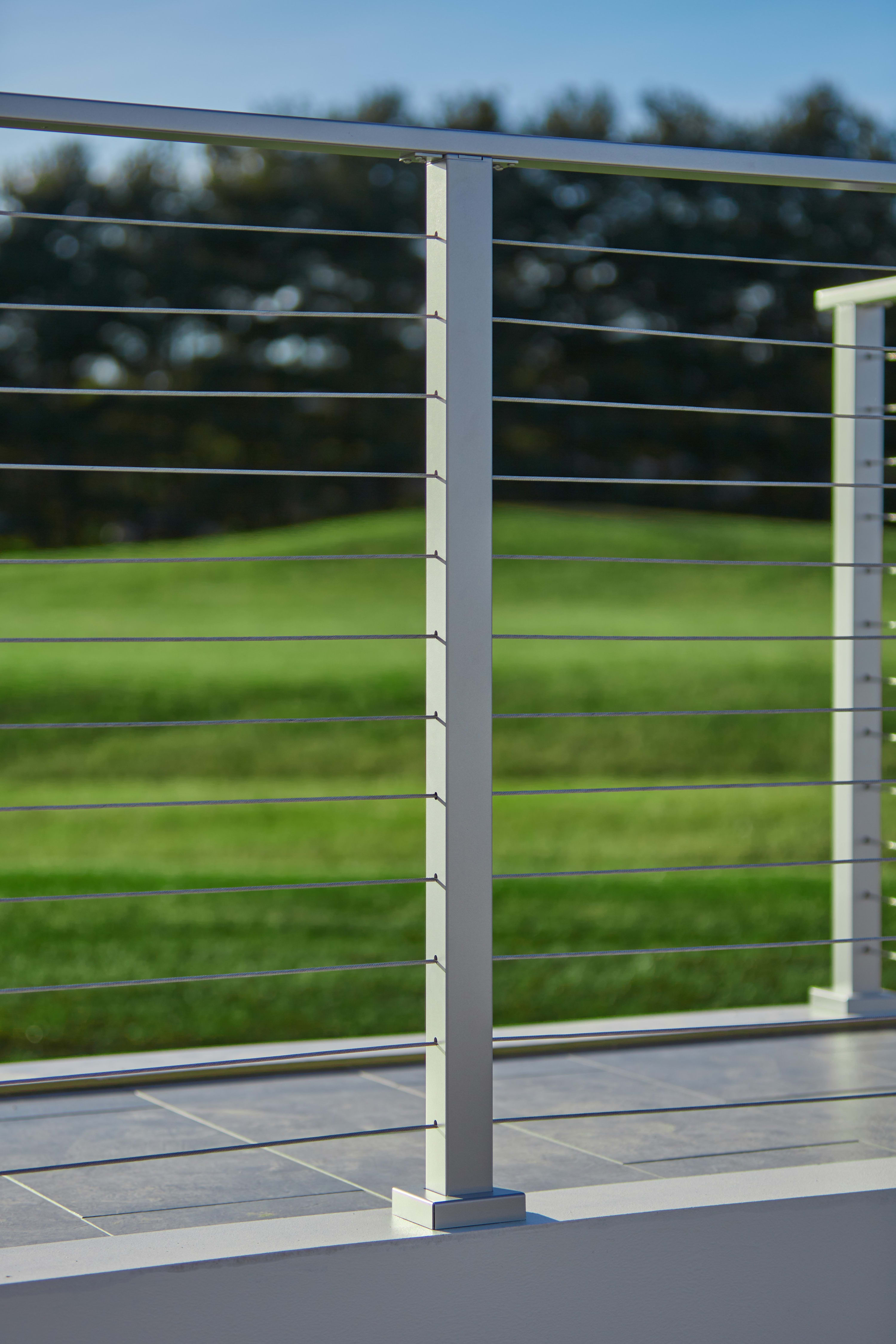

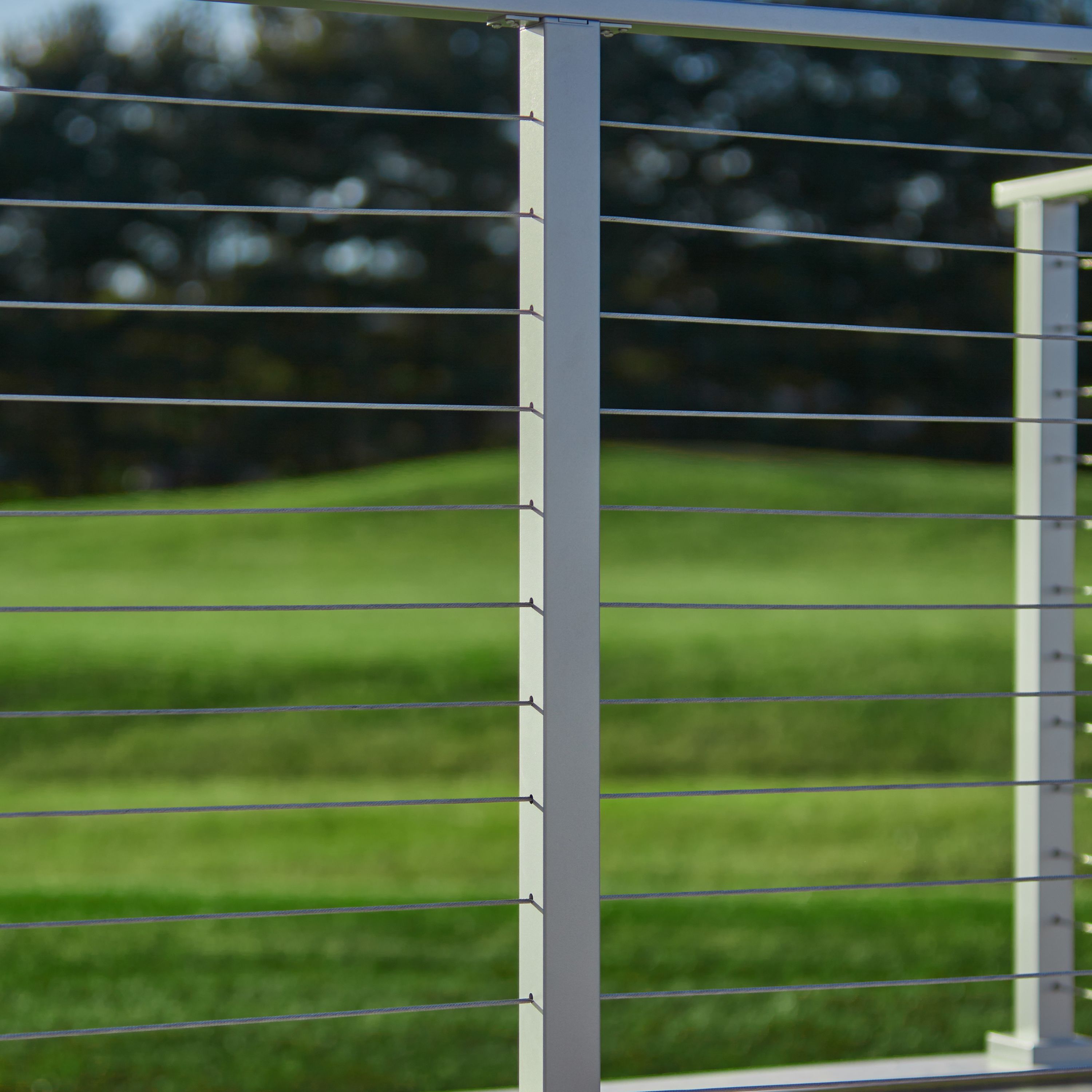

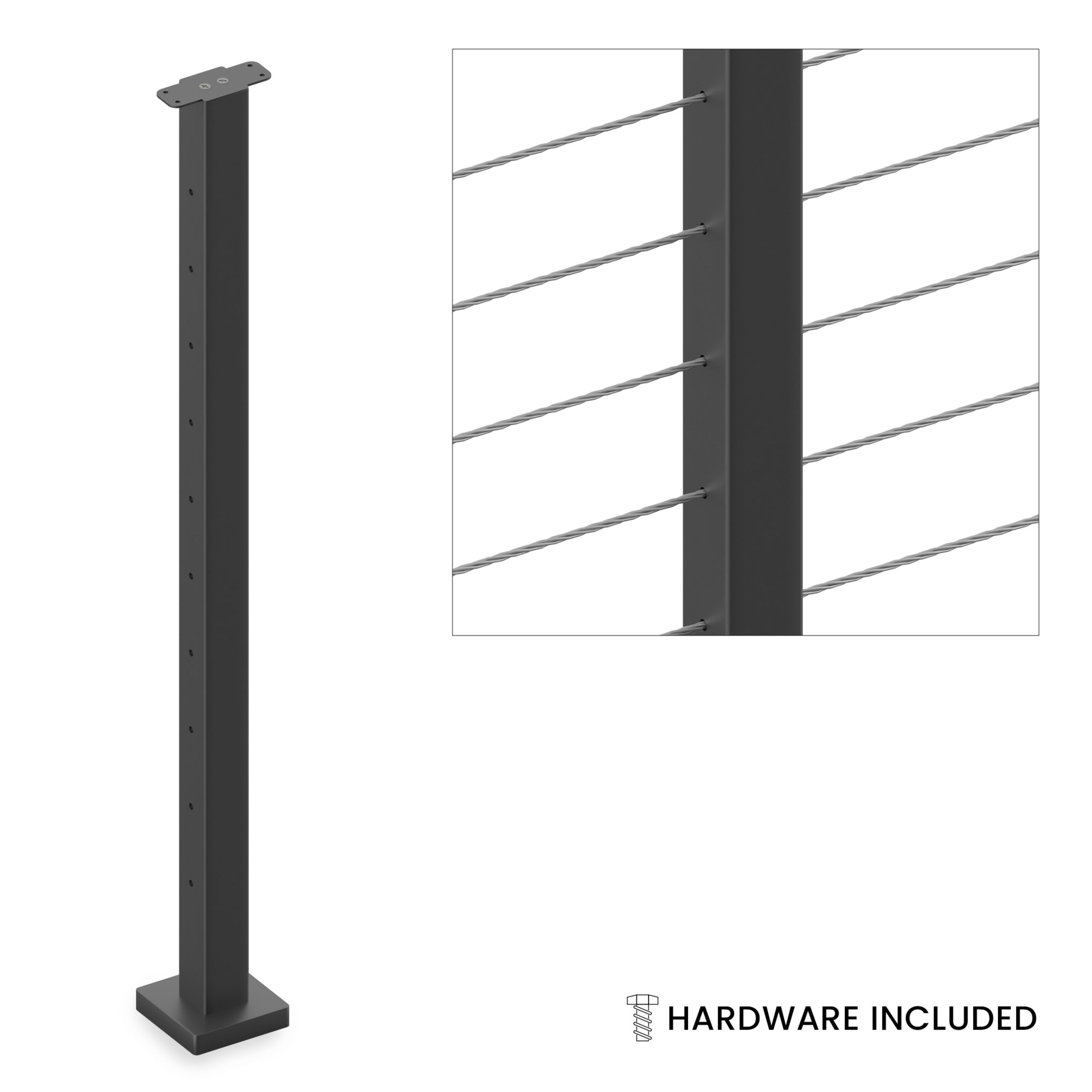

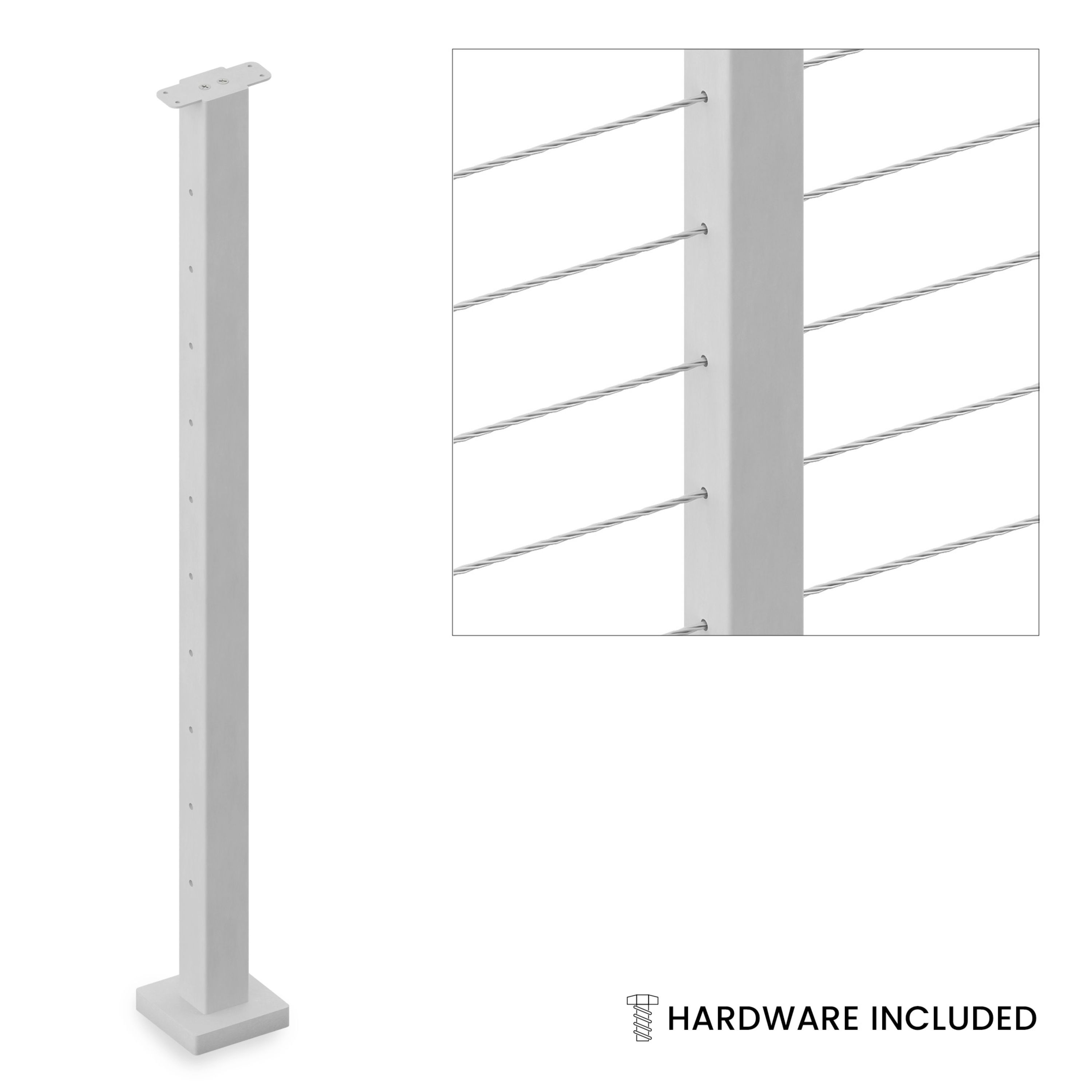

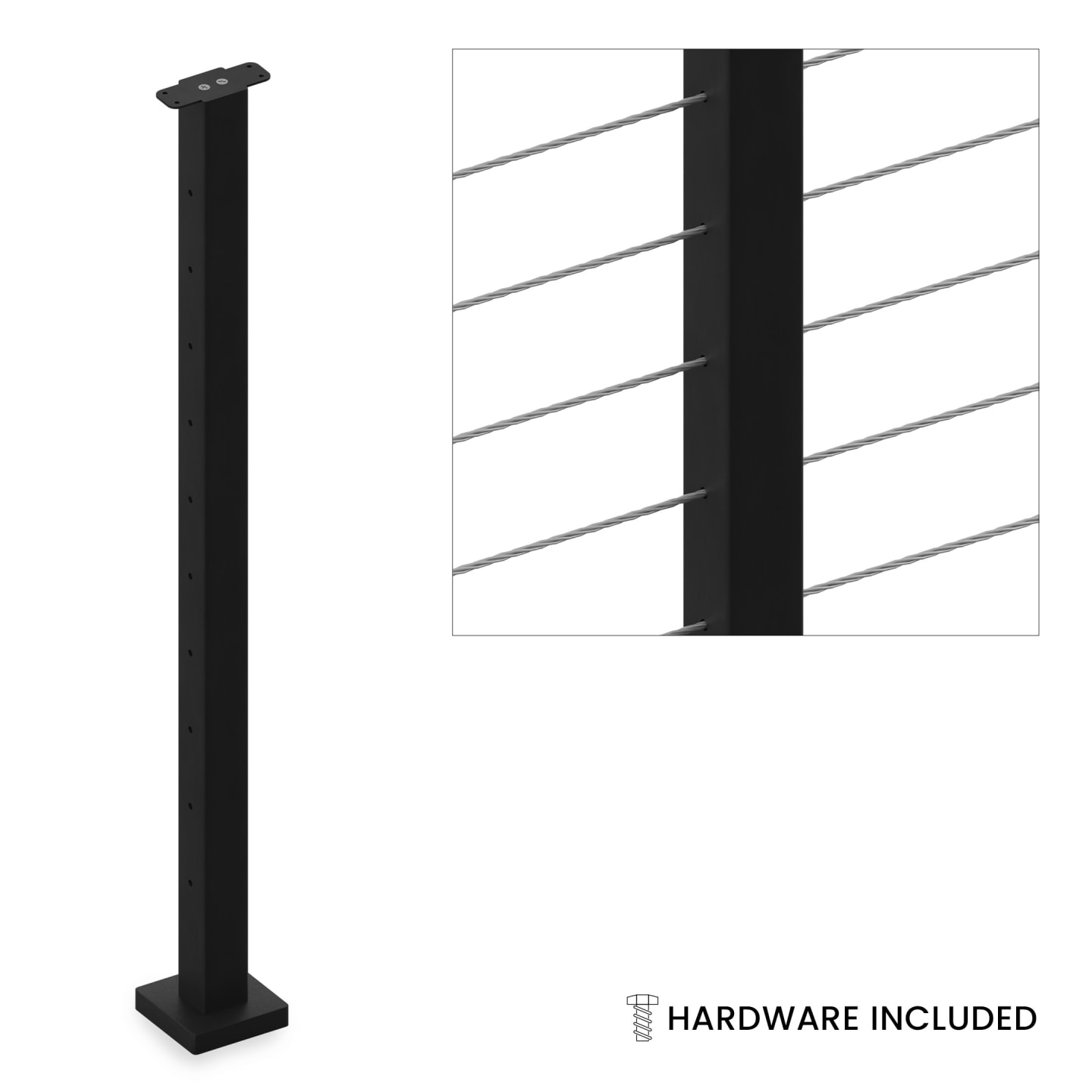

Express Level Line Post

The Express Level Line Post is the mid‑span support, installed in between end posts for straight Express cable‑rail runs.

Pre‑drilled on two faces, the Level Line Post keeps cables perfectly level without field drilling or bending. Installed in minutes, the post ships complete with mounting hardware and, in most cases, leaves our Indiana facility in 1-3 business days.

This product is backed by Viewrail’s 10‑year structural / 5–10‑year finish warranty (Excluding coastal regions).

HIGHLIGHTS

All‑in‑one kit — all components and mounting hardware included, no extras to buy.

Express‑system ready — integrates with 1/8 in. Express tension & anchor kits; cable simply passes through, no fittings required.

Quick turnaround — ships in 1-3 days from Goshen, IN.

Pre‑drilled accuracy — 10 (36 in.) or 12 (42 in.) holes align 1/8 in. cables on 3.125 in. centers.

Lightweight strength — our aluminum is 80 % lighter than steel yet meets the same structural loads.

ICC‑certified safety — compliant to ESR‑4798 when installed per report.

Made in the USA — manufactured in Goshen, IN.

WHAT'S IN THE BOX

• Express Level Line Post (pre‑drilled)

• Matte finish foot cover (standard height)

• 3½‑in. stainless structural screws (4‑pack, wood/concrete‑anchor ready)

• Composite leveling shims (2‑pack)

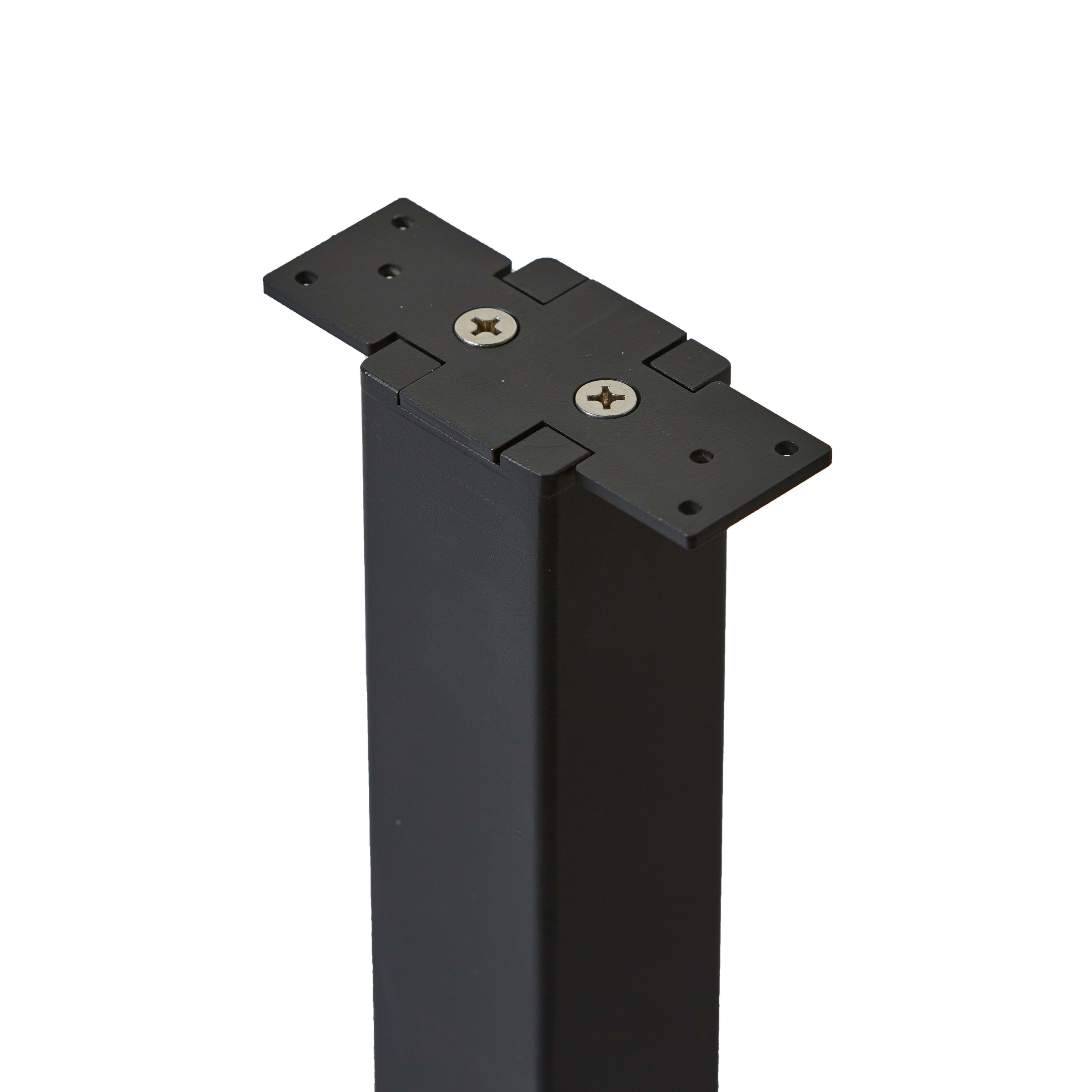

• Flat‑top handrail bracket

• ¼‑20 × ½‑in. Phillips flat‑head screws (2‑pack) for bracket

• Aluminum pop rivets (6)

Line posts do not require cable‑end fittings — the cable passes straight through.
