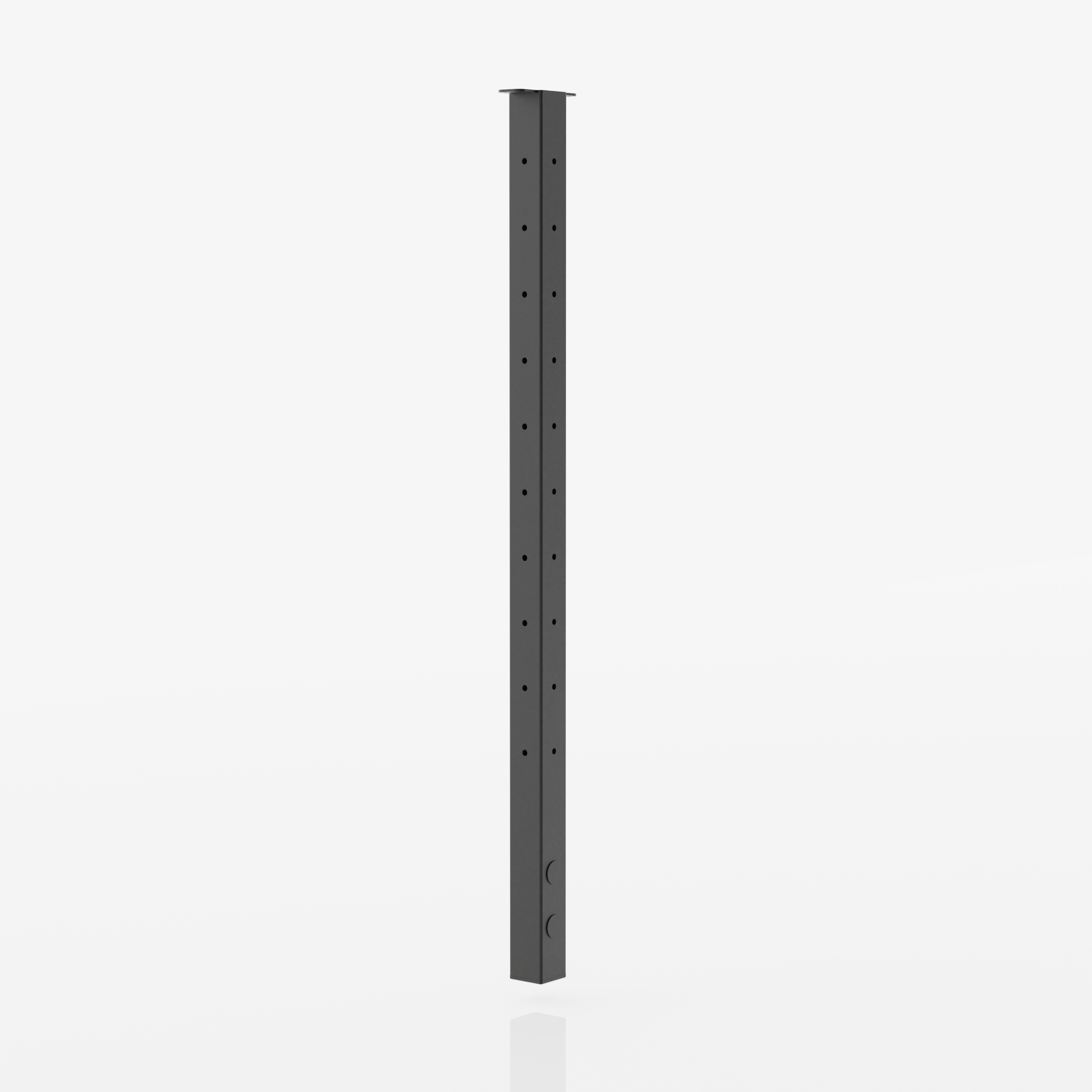

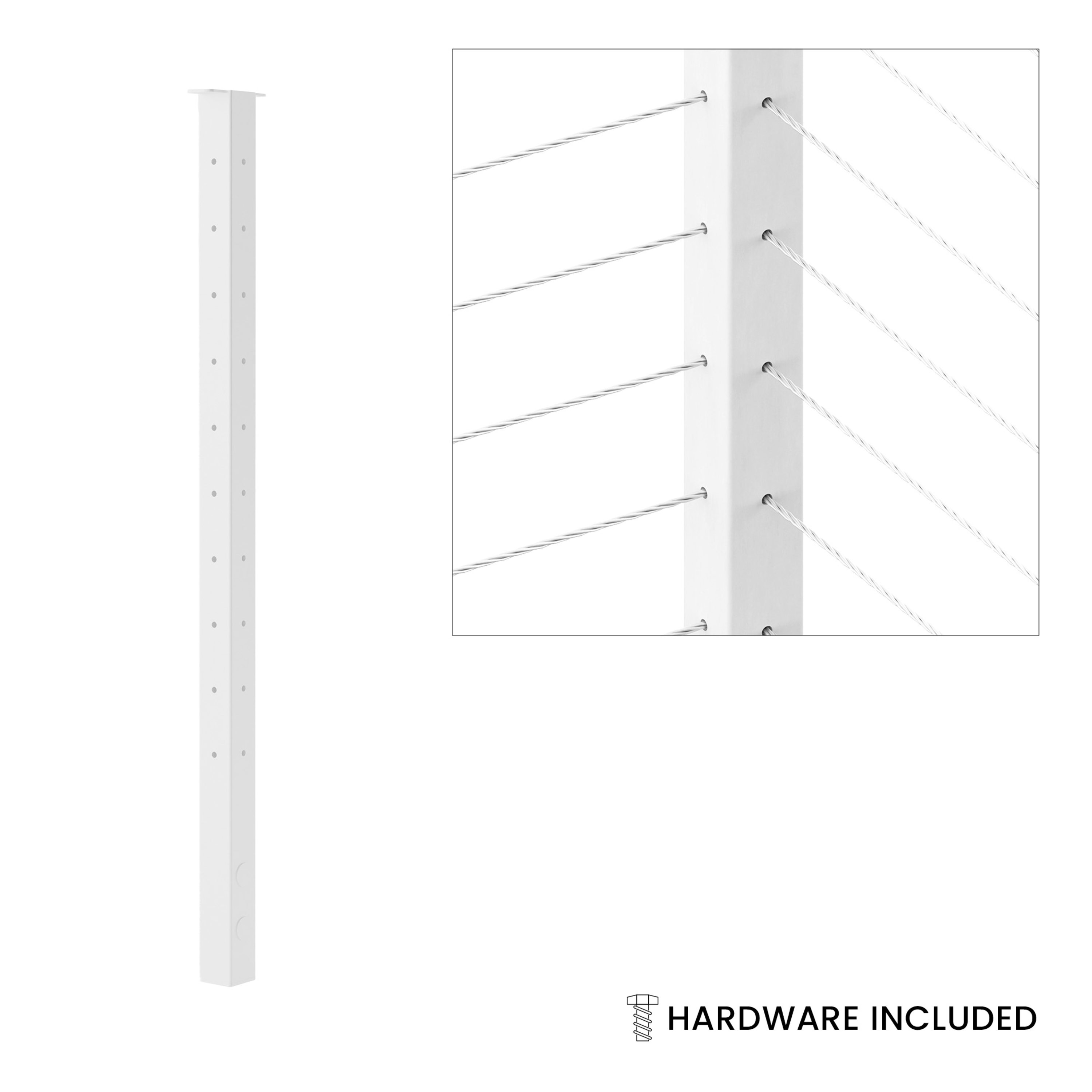

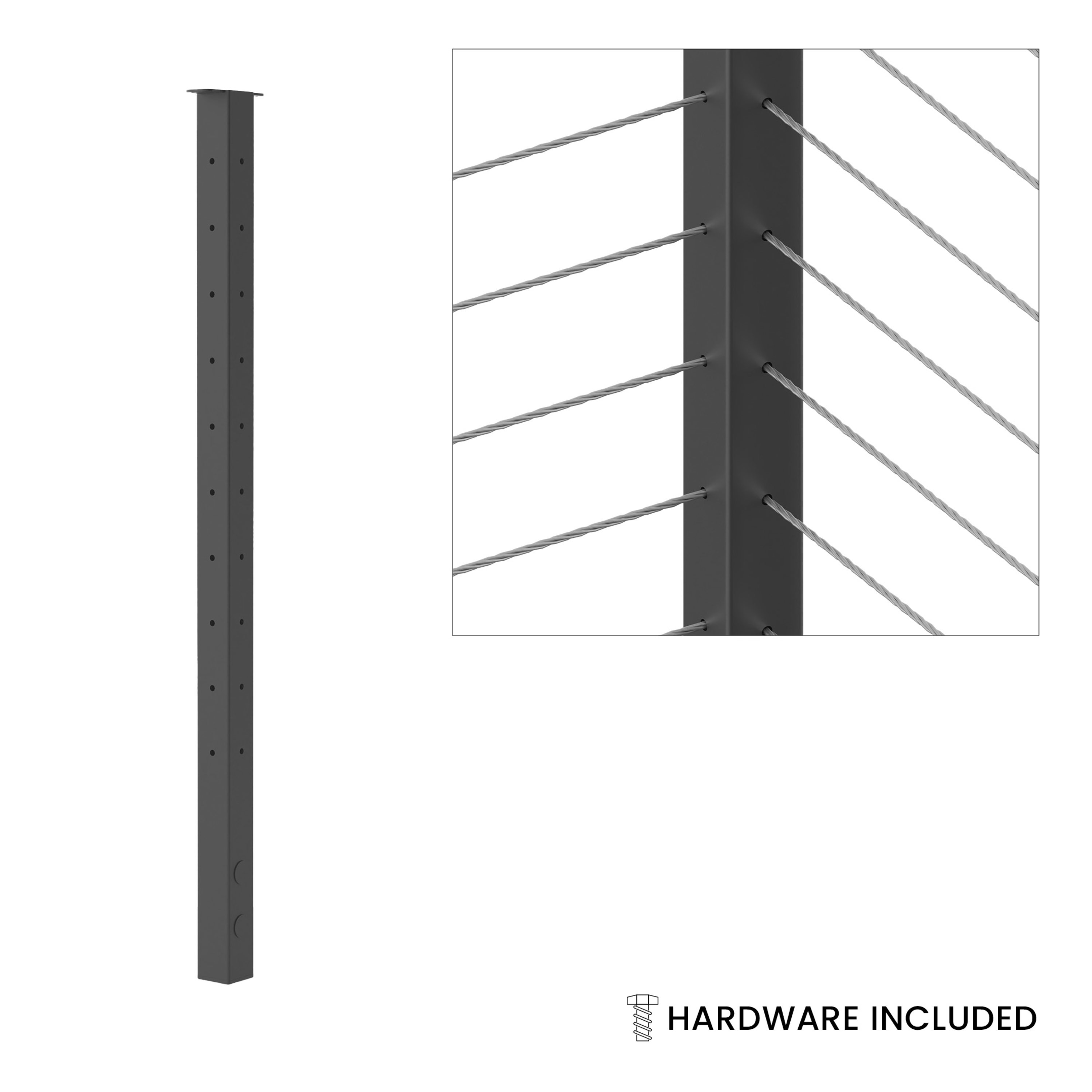

Express Sidemount Corner Post

The Express Side Mount Corner Post lets you make a crisp 90° turn while keeping your deck surface completely clear.

Pre-drilled on two adjacent faces and welded to a slim fascia plate, it mounts to properly blocked framing and anchors every cable run that meets at the corner. Select the inside-corner (L) configuration or outside-corner (X) configuration to match your deck layout — either option finishes the turn with just one post. Ships fast from Goshen, Indiana, typically in 1 – 3 business days.

This product is backed by Viewrail’s 10-year structural / 5-10-year finish warranty (excluding coastal regions).

HIGHLIGHTS

• All-in-one kit — post, cover, hardware, and handrail bracket included; nothing extra to buy.

• One-post corners — proprietary L or X connector keeps sightlines open and eliminates the second post most systems require.

• Express-system ready — works with 1/8 in. Express tension and anchor kits to terminate cable neatly on each face.

• Quick turnaround — leaves Goshen, IN in about 3 days to keep projects on schedule.

• Pre-drilled accuracy — 10 (36 in.) or 12 (42 in.) holes align 1/8 in. cables on 3.125 in. centers.

• Lightweight strength — powder-coated aluminum is 80 % lighter than steel yet meets the same structural loads.

• ICC-certified safety — compliant with ICC-ESR-4798 when installed per report.

• Made in the USA — manufactured and finished in Goshen, Indiana.

WHAT’S IN THE BOX

• Express Side Mount Corner Post (pre-drilled, fascia-mount plate attached)

• Matte-finish plate cover (standard height)

• Inside-corner L or outside-corner X cable connector (pre-installed)

• 3 ½-in. stainless structural screws — 4-pack, wood/concrete-anchor ready

• Composite leveling shims — 2-pack for quick plumb adjustment

• Flat-top handrail bracket with (2) ¼-20 × ½ in. Phillips flat-head screws

• Black aluminum pop rivets — 6 for securing the bracket cover

Note: Corner posts terminate cables—the cable does not pass through. The mounting plate’s top edge sits 1 ⅜ in. below deck-surface height; plate height is 6 in., so ensure at least 8 in. of fascia depth for a code-compliant install.
