Express Angle Line Post
36" Black Angle Line Cable Railing Post
SKU: 738557
Sale price
$142.79
$167.99
Color
Standard Black
height
36" tall (10 holes)
Ships in about 1 business day(s)
In stock

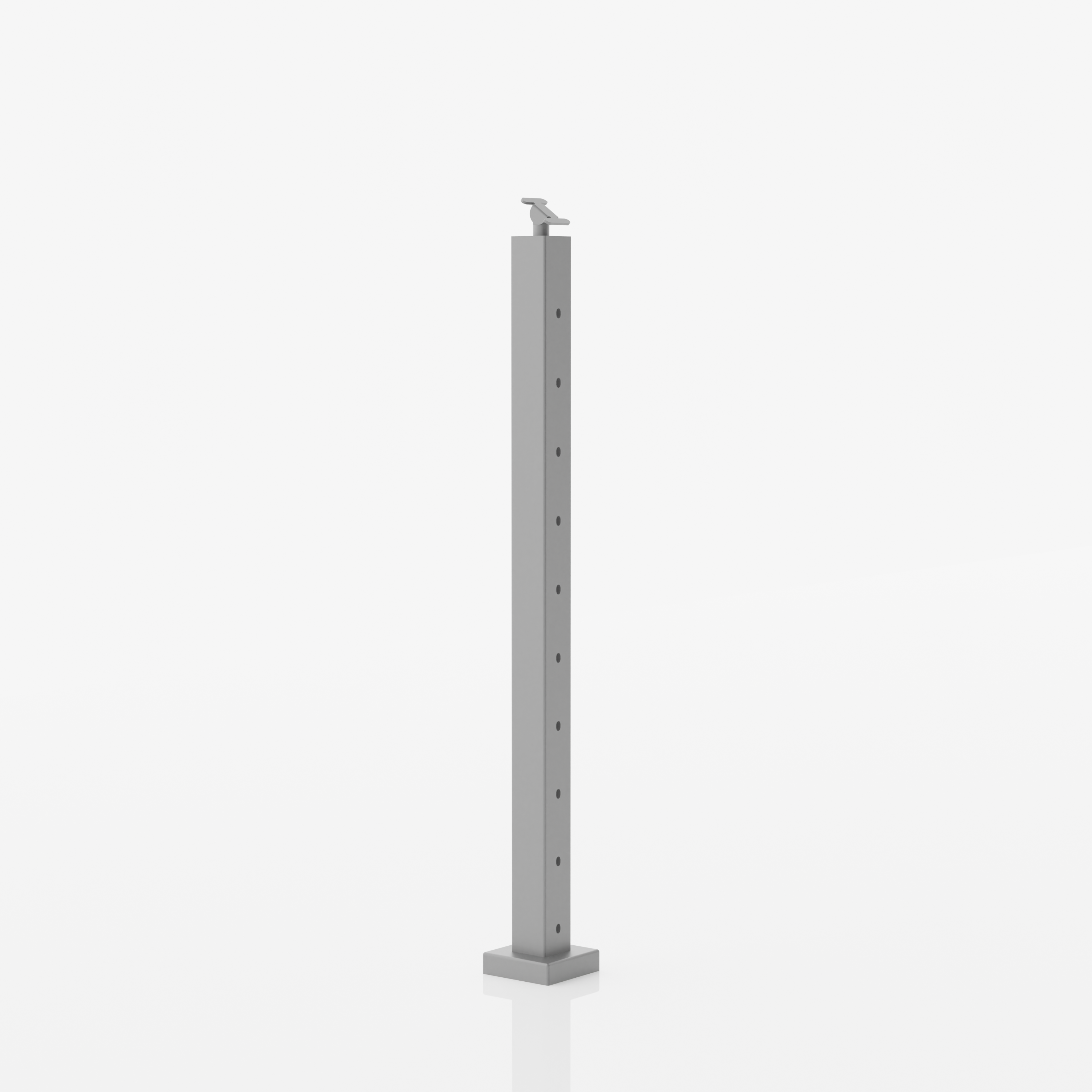

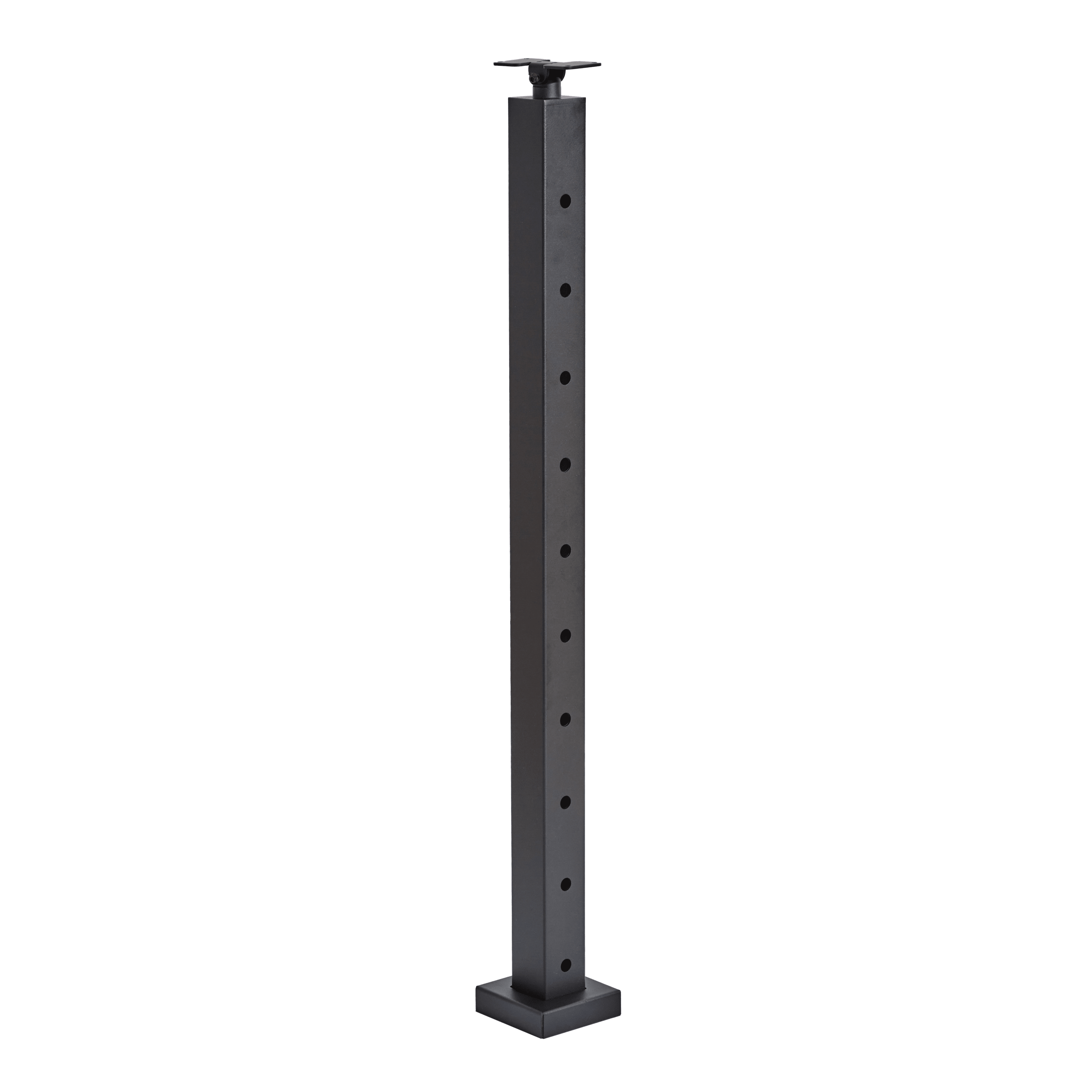

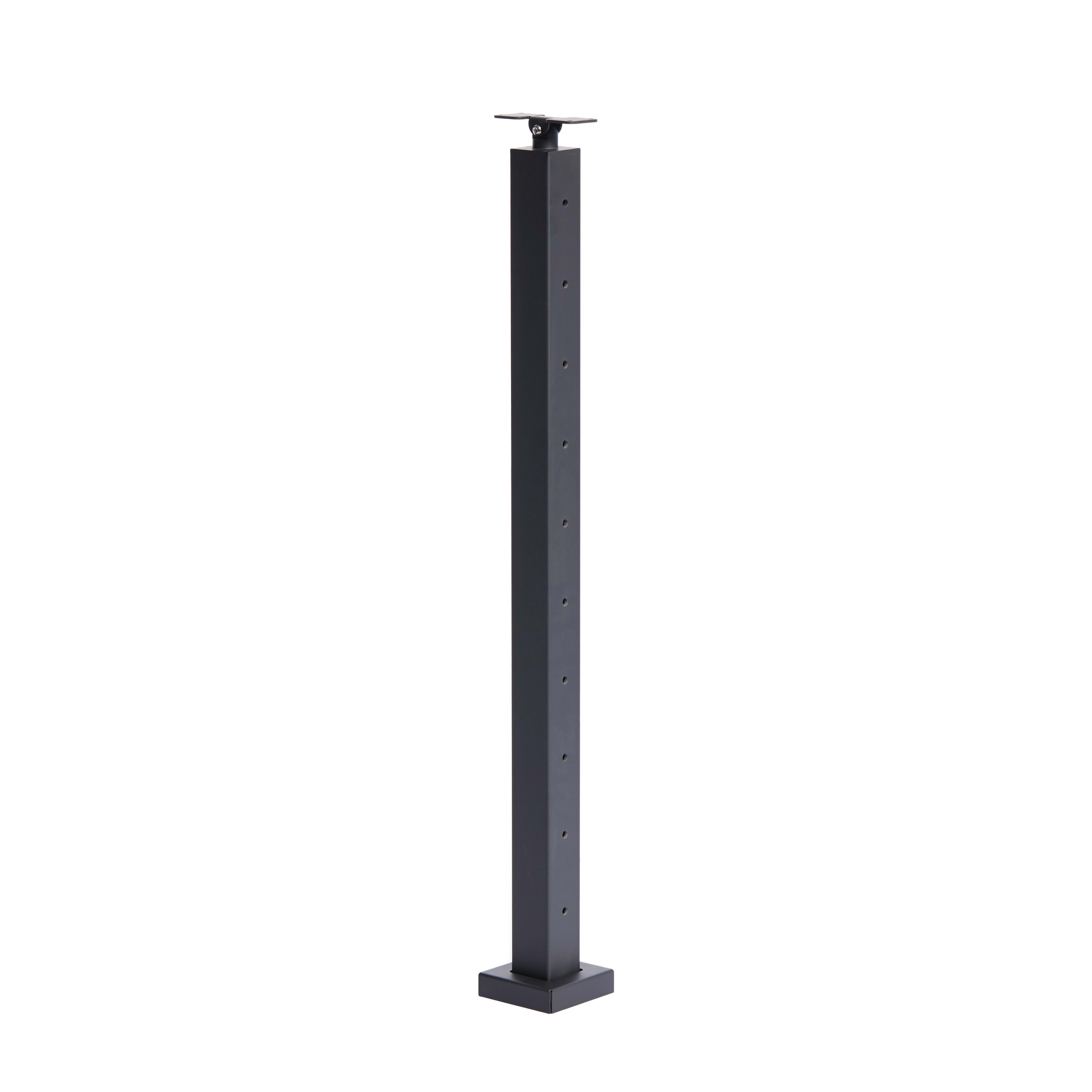

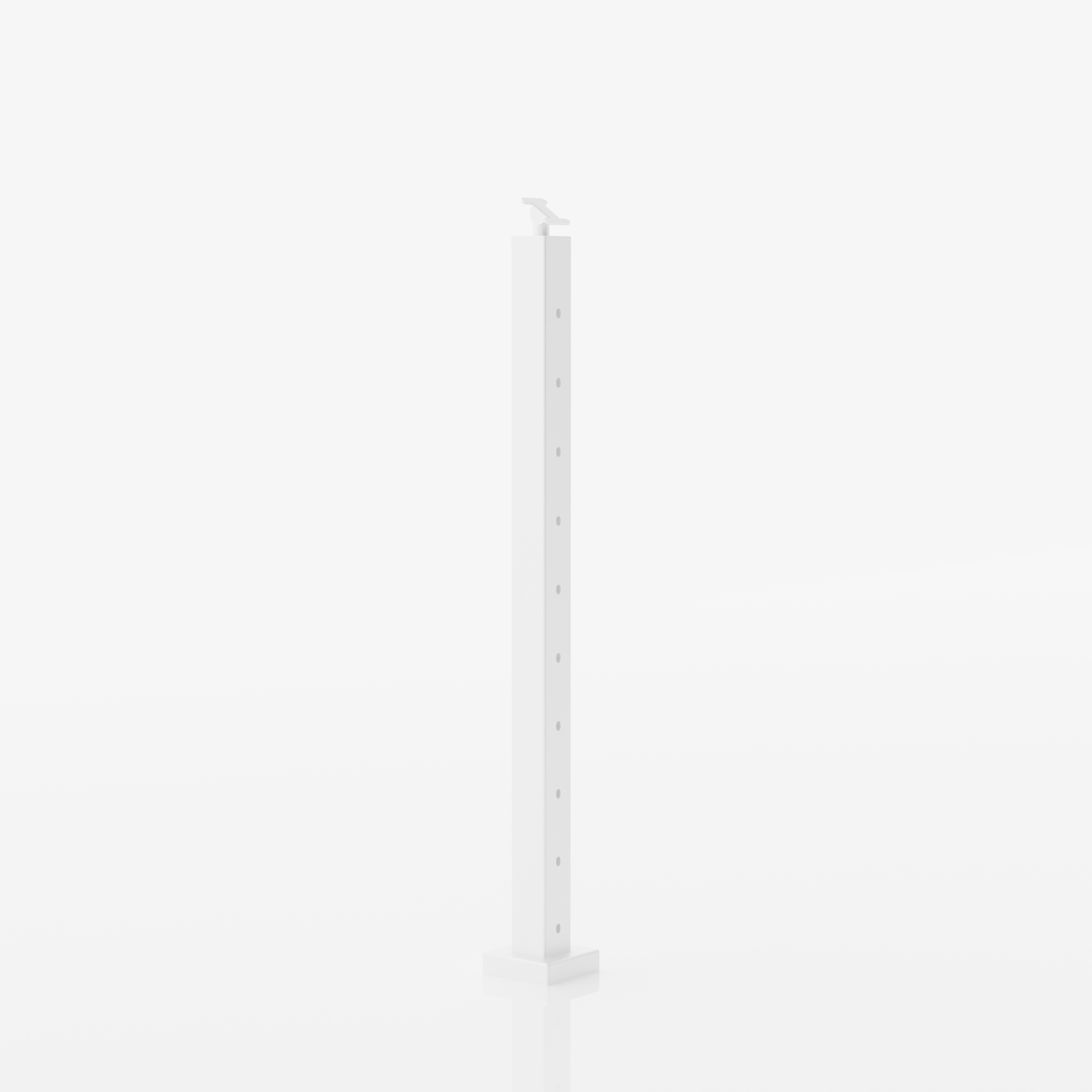

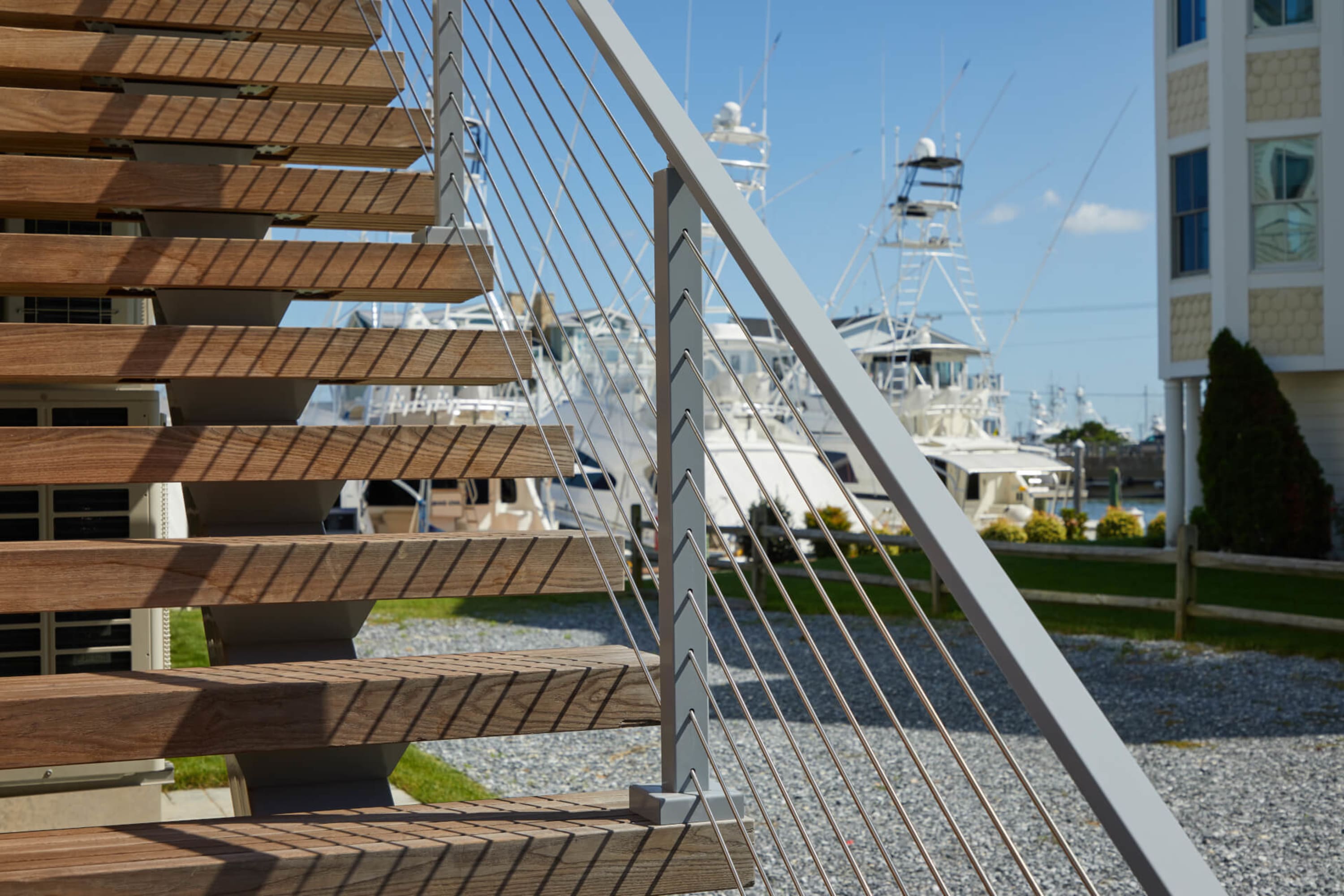

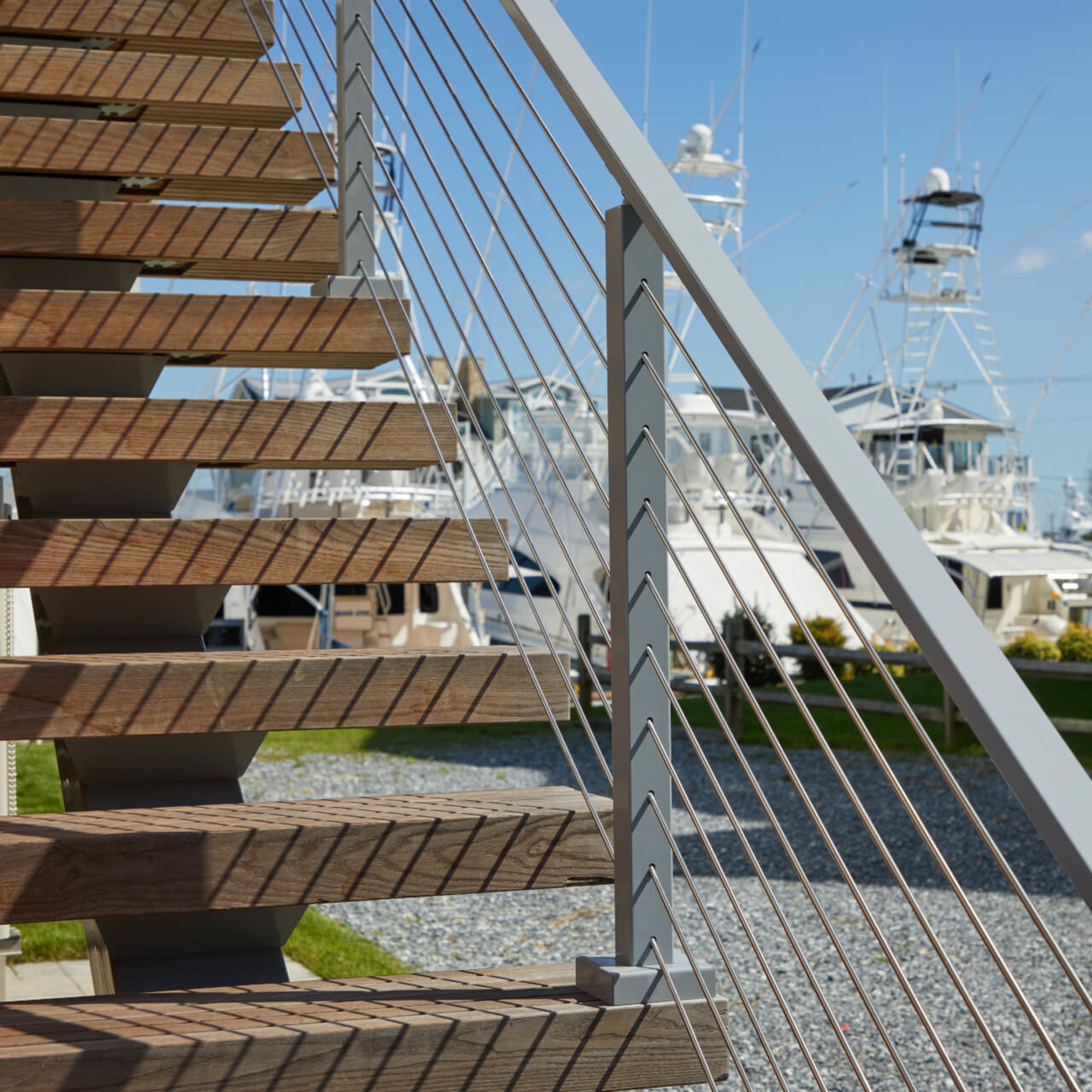

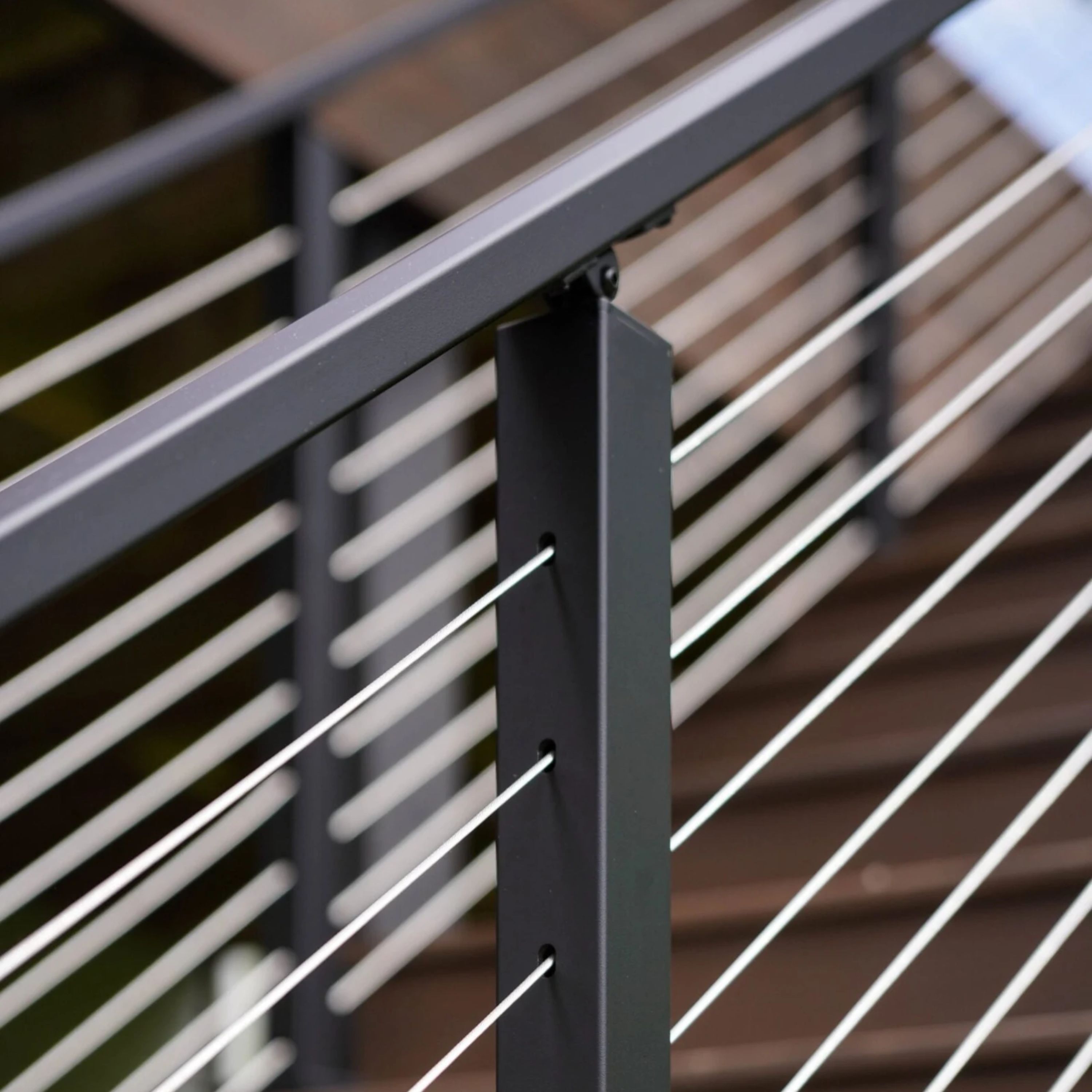

Express Angle Line Posts provide mid‑span support for angled stair Express cable‑rail runs.

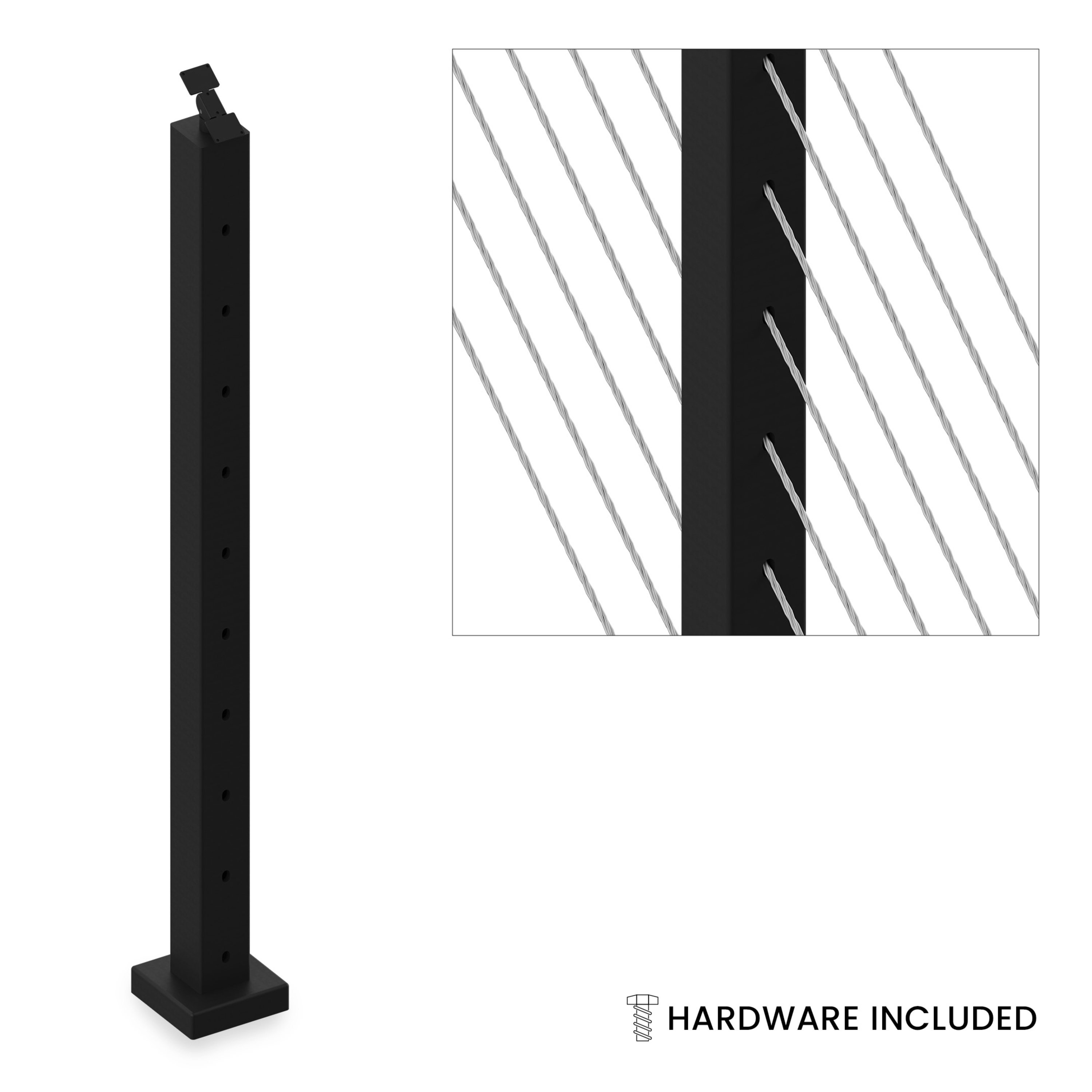

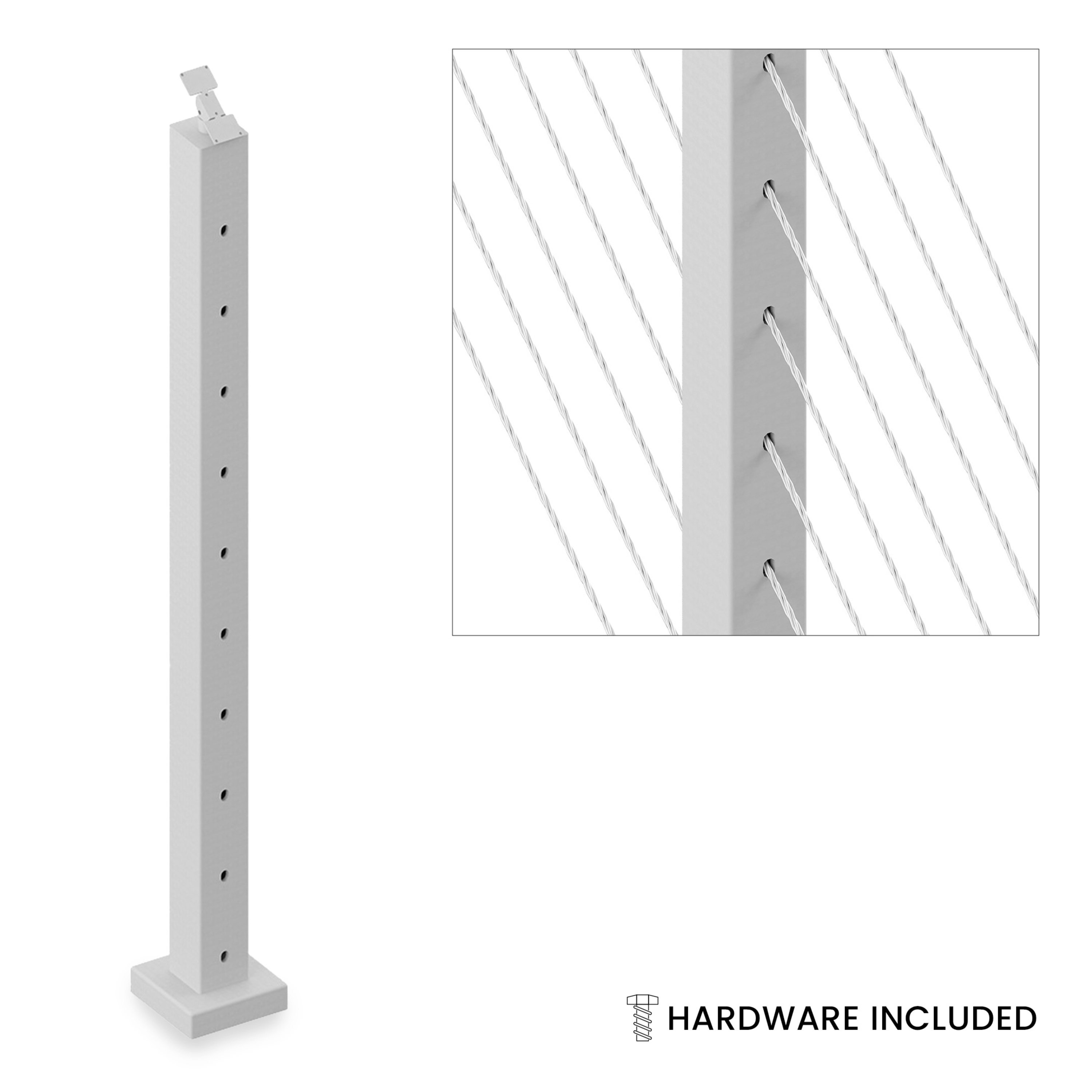

Pre‑slotted on two faces, the Angle Line Post keeps cables on course without field drilling or bending — even across typical stair angles up to 40°. Installed in minutes, the post ships complete with all mounting hardware and, in most cases, leaves our Indiana facility in 1-3 business days.
This product is backed by Viewrail’s 10‑year structural / 5–10‑year finish warranty (excluding coastal regions).
HIGHLIGHTS
All‑in‑one kit — all components and mounting hardware included, no extras to buy.
Express‑system ready — integrates with 1/8 in. Express tension and anchor kits (cable passes straight through, no line‑post fittings needed).
Quick turnaround — ships in 1-3 days from Goshen, IN.

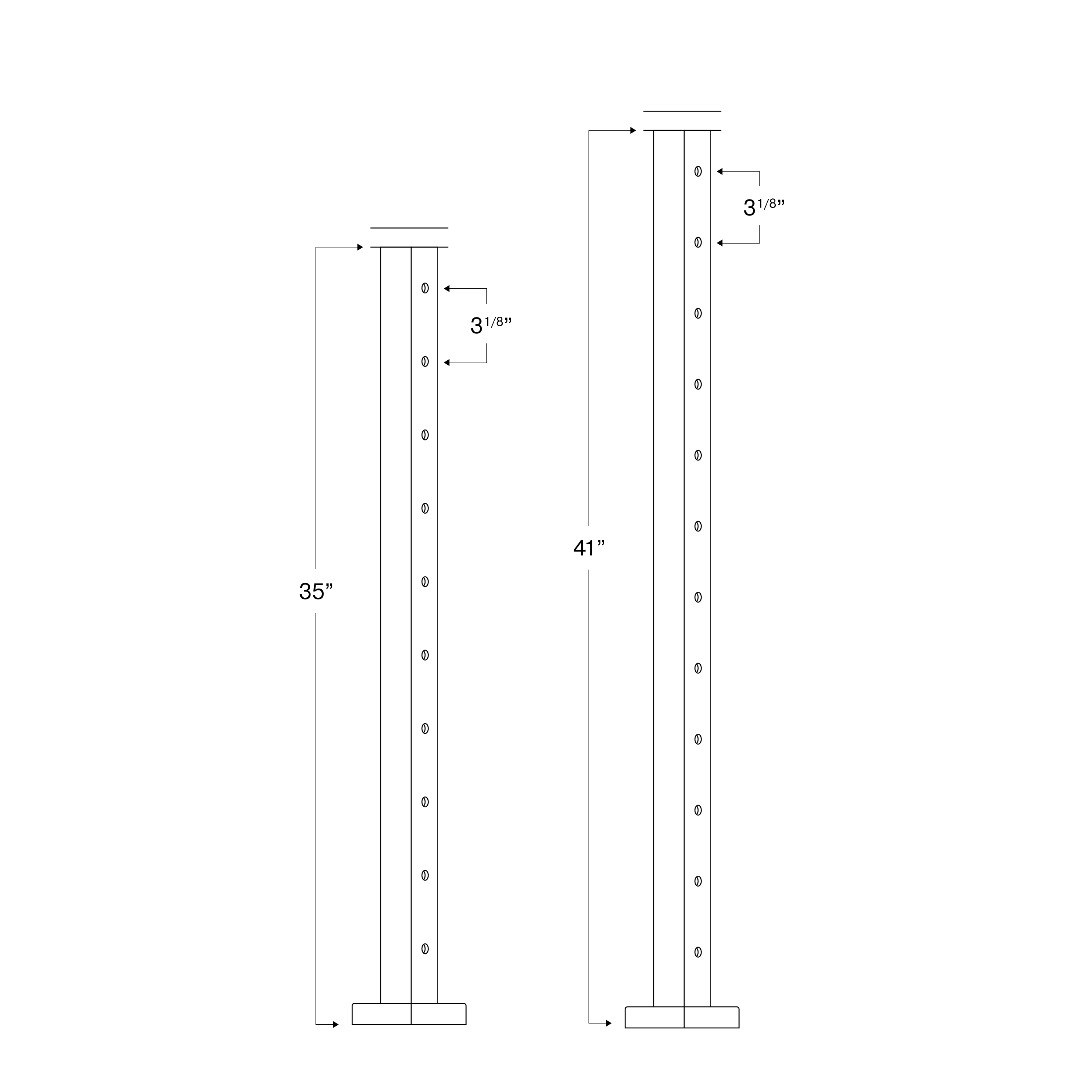

Pre‑slotted accuracy — 10 (36 in.) or 12 (42 in.) slots guide 1/8 in. cables cleanly along 30°–40° stair pitches.
Lightweight strength — our aluminum is 80 % lighter than steel yet meets the same structural loads.
ICC‑certified safety — compliant to ESR‑4798 when installed per report.
Made in the USA — manufactured in Goshen, IN from domestic and imported materials.
WHAT'S IN THE BOX
Express Angle Line Post (pre‑slotted)
Matte finish foot cover (standard height)
3½‑in. stainless structural screws (4‑pack, wood/concrete‑anchor ready)
Composite leveling shims (2‑pack)

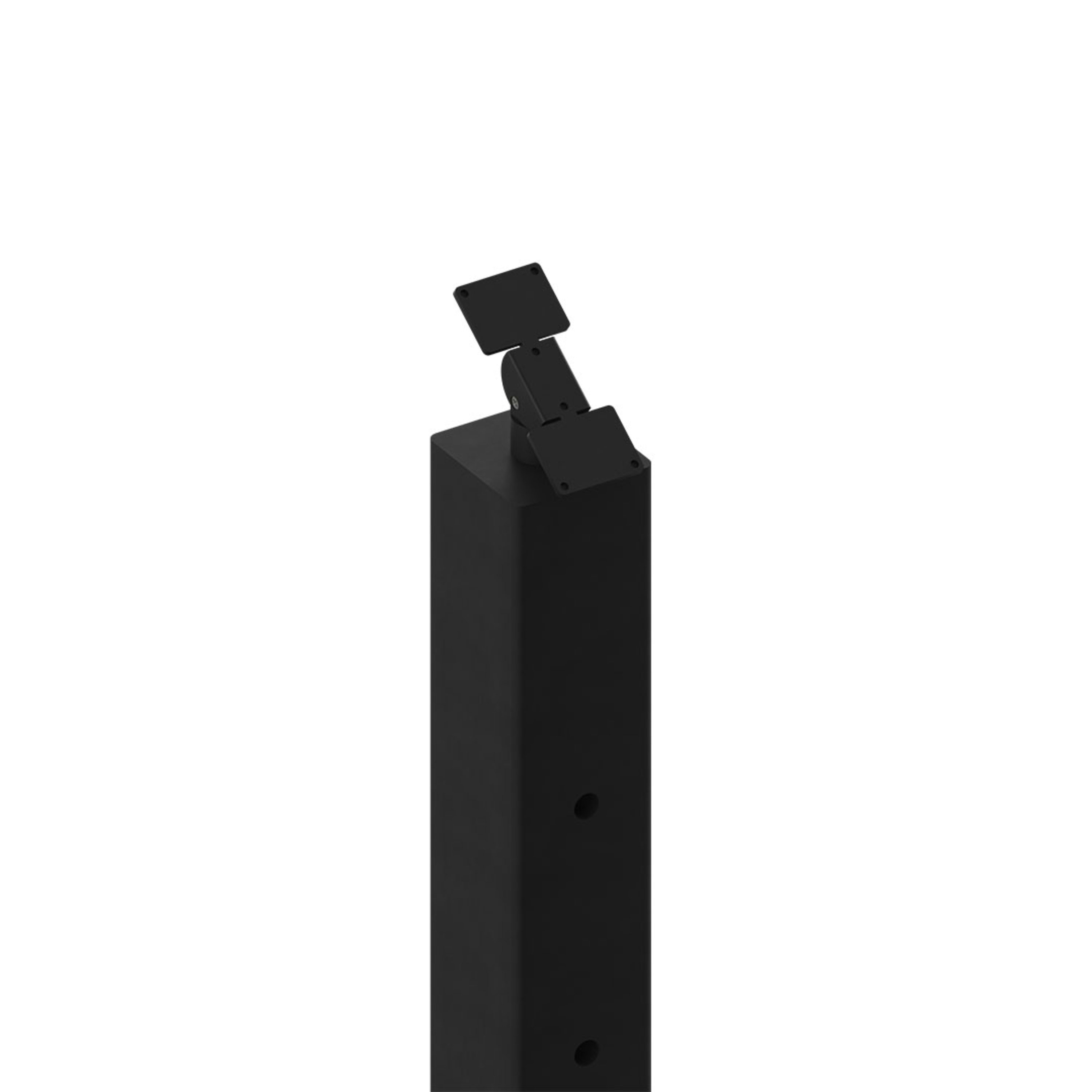

Flat‑top handrail bracket
¼‑20 × ½‑in. Phillips flat‑head screws (2‑pack) for bracket
Aluminum pop rivets (6)
Line posts do not require cable‑end fittings—the cable passes straight through.
Frequently Asked Questions
The stair line post is the post that's located in the middle of a stair railing run. It's job is to hold the cable in a line and provide structural support. There is no tensioning hardware necessary for the post.
This answer will depend on how many feet your railing run will span. To be up to code A railing post is required every 4 feet. This means that if you divide your railing span length by 4 you'll have the ALMOST correct amount of posts. Because every project requires TWO end posts. You will subtract this 2 from this number every time. For example 20ft / 4ft = 5, 5 - 2 end posts = 3 line posts.
There is no current support for level posts to be connected to stair posts. If you would like to have both a stair & level system contact our team for our custom solutions or purchase a stair & level run separately.
Viewrail's express post system is excluded from the Viewrail Warranty Program. Stainless and Aluminum make contact in a salty environment a galvanic reaction occurs accelerating corrosion. Because of this, Viewrail has created a coastal specific solution which provides a long-lasting and low maintenance railing system for coasts.
For more information on this product line contact our sales team via the quote or contact us directly by phone.
