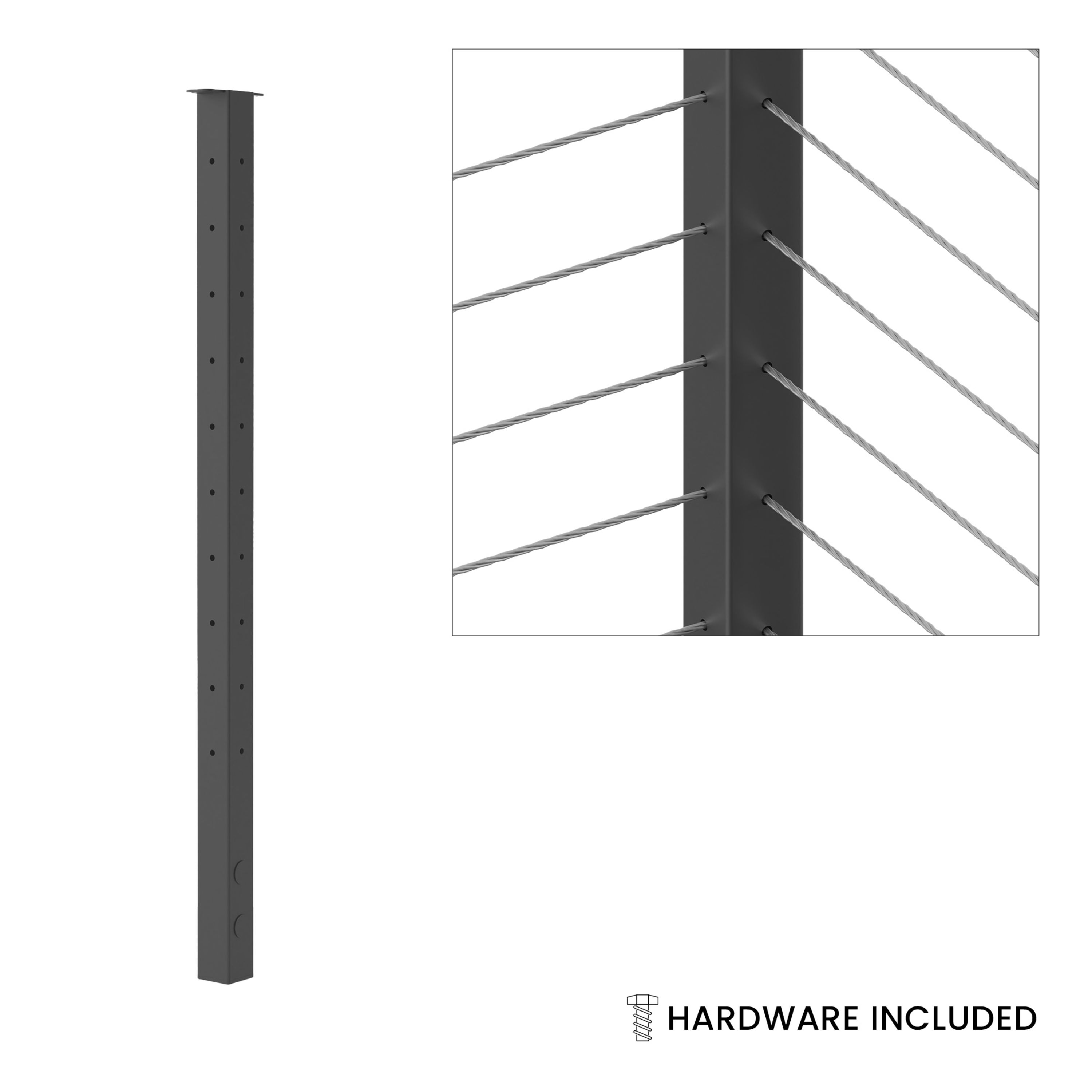

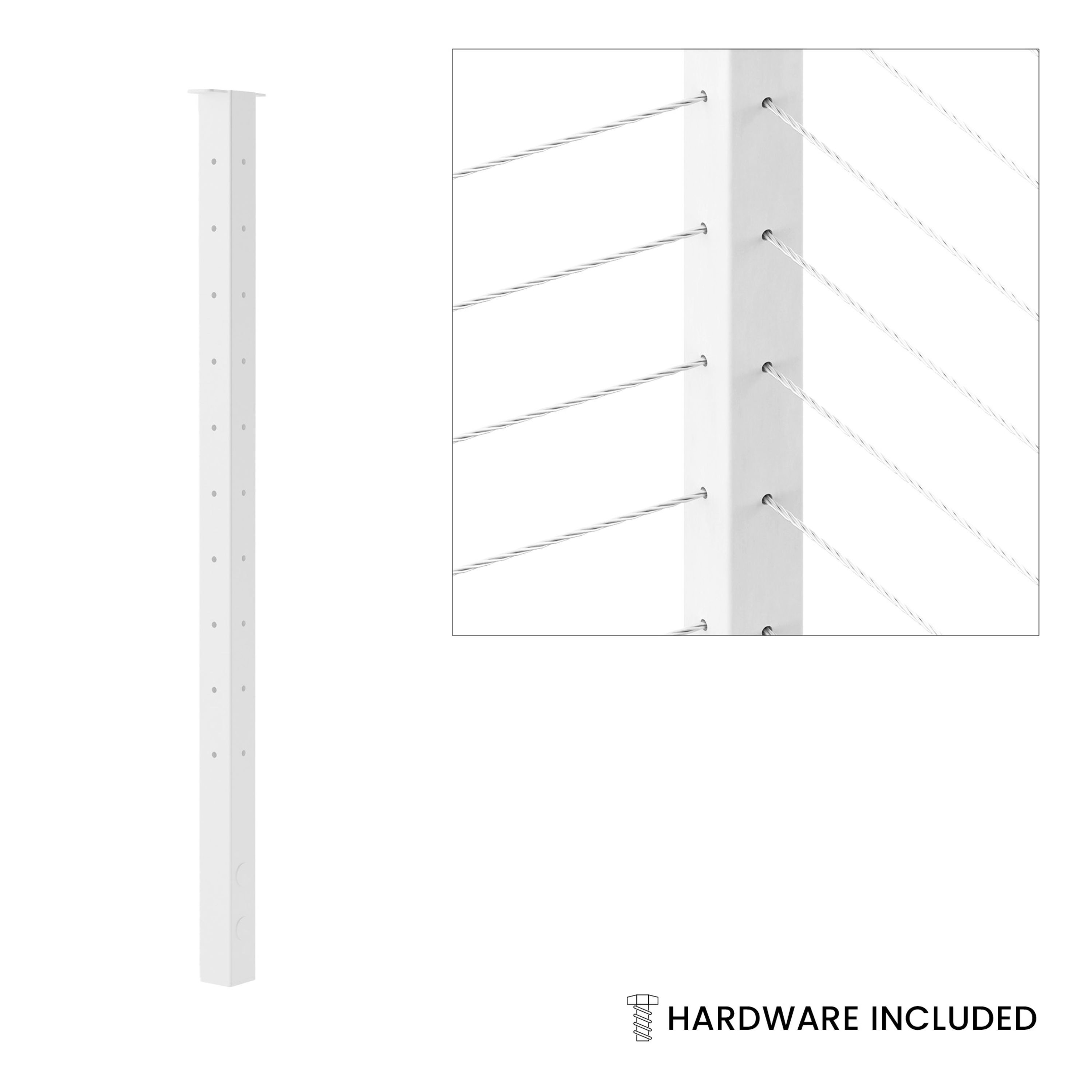

Express Side Mount Level Inside Corner Post

• Express Side Mount Inside Corner Post (pre-drilled, fascia-mount plate attached)

• Matte-finish plate cover (standard height)

• 5/16" x 3-1/2" stainless structural screws — 4-pack, wood/concrete-anchor ready

• Composite leveling shims — 2-pack for quick plumb adjustment

• Flat-top handrail bracket with Phillips flat-head screws

• Black aluminum pop rivets — 6 for securing the bracket cover

Note: Corner posts terminate cables—the cable does not pass through. The mounting plate’s top edge sits 1 ⅜ in. below deck-surface height; plate height is 6 in., so ensure at least 8 in. of fascia depth for a code-compliant install.

• All-in-one kit — post, cover, hardware, and handrail bracket included; nothing extra to buy.

• One-post inside corners — keeps sightlines open and eliminates the second post most systems require.

• Express-system ready — works with 1/8 in. Express tension and anchor kits to terminate cable neatly on each face.

• Quick turnaround — leaves Goshen, IN in about 3 days to keep projects on schedule.

• Pre-drilled accuracy — 10 (36 in.) or 12 (42 in.) holes align 1/8 in. cables on 3.125 in. centers.

• Lightweight strength — powder-coated aluminum is 80 % lighter than steel yet meets the same structural loads.

• ICC-certified safety — compliant with ICC-ESR-4798 when installed per report.

• Made in the USA — manufactured and finished in Goshen, Indiana.
