$171.14
Color
Selected: Standard Silver
Handrail Height
Ships on Wednesday, Jun 17

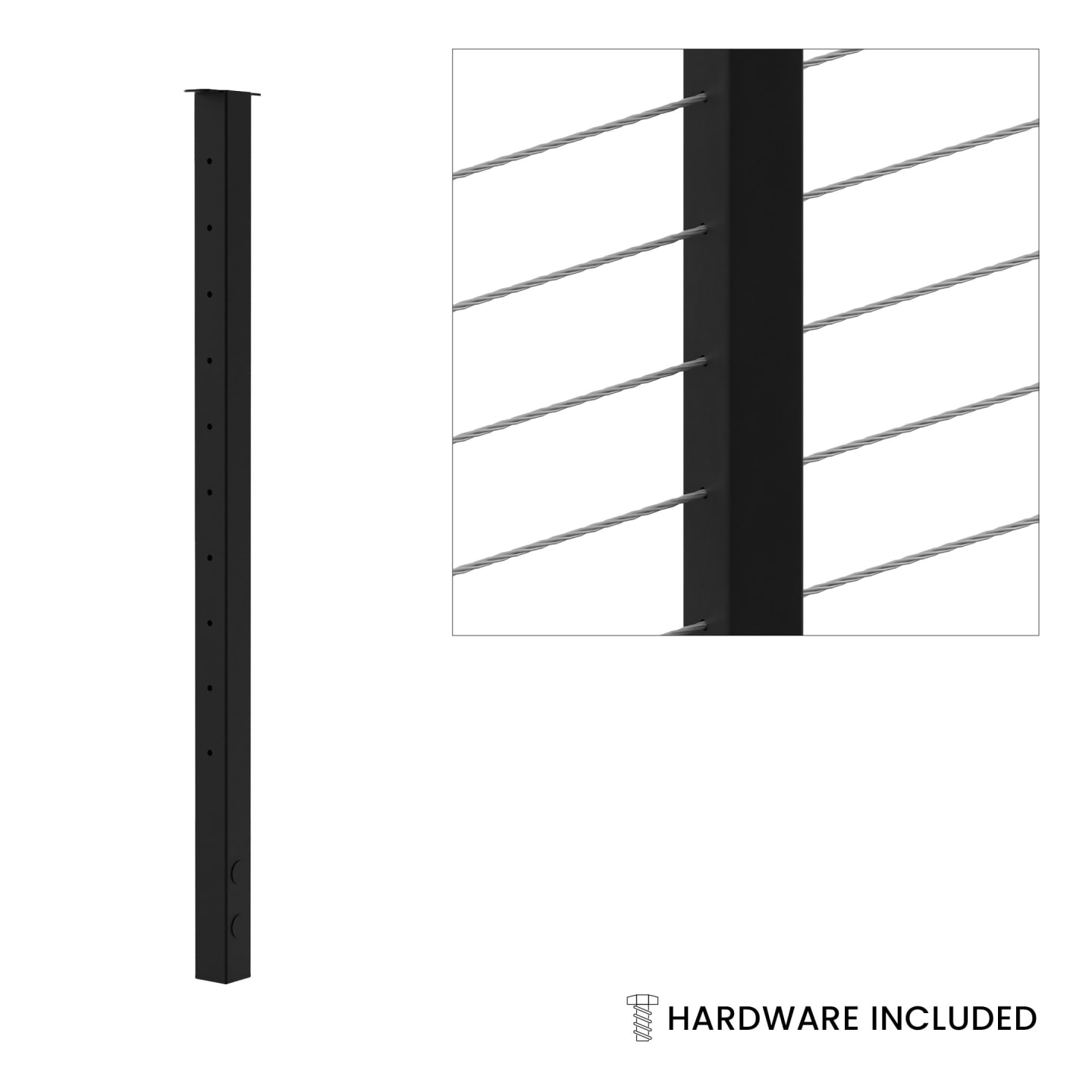

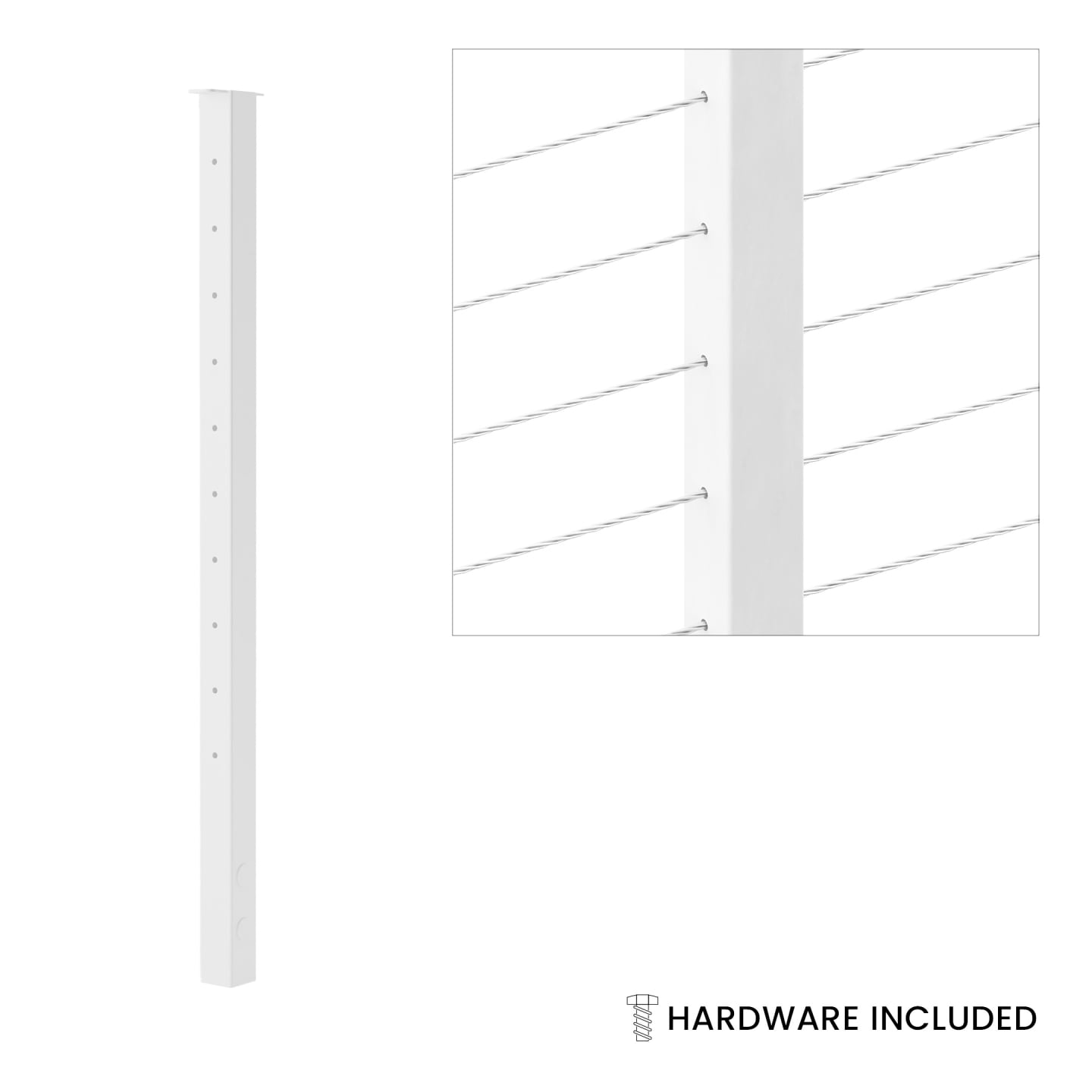

The Express Sidemount Level Line Post is the mid-span support for fascia-mounted Express cable-rail runs.
Pre-drilled on two faces, it bolts directly to properly blocked fascia boards and keeps cables perfectly level — no field drilling, bending, or tension hardware required. Install one line post every 4 ft. between two end posts (or corner posts) to meet code and maintain a rigid, open-view railing. Ships fast from Goshen, Indiana, usually in 1–3 business days.
We offer competitive warranties for our express railing products! Learn more about structural and finish warranties of our express and signature railing products.
All-in-one kit — post, plate cover, fasteners & bracket included; nothing extra to buy.
Express-system ready — integrates with 1/8 in. Express tension and anchor kits
Quick turnaround — leaves Goshen, IN in about 3 days to keep jobs on schedule.
Pre-drilled accuracy — 10 (36 in.) or 12 (42 in.) holes align 1/8 in. cables on 3.125 in. centers.
Lightweight strength — powder-coated aluminum is 80 % lighter than steel yet meets the same structural loads.
ICC-certified safety — compliant with ICC-ESR-4798 when installed per report.
Made in the USA — manufactured and finished in Goshen, Indiana.
Express Sidemount Level Line Post (pre-drilled, fascia-mount plate attached)
Matte-finish plate cover (standard height)
5/16" x 3-1/2" stainless structural screws — 4-pack, wood/concrete-anchor ready
Composite leveling shims — 2-pack for quick plumb adjustment
Flat-top handrail bracket with (2) Phillips flat-head screws
Black aluminum pop rivets — 6 for securing the bracket cover
Note: Line posts do not require cable-end fittings—the cable passes straight through. The mounting plate’s top edge sits 1 ⅜ in. below deck-surface height; plate height is 6 in., so ensure at least 8 in. of fascia depth for a code-compliant install.
The side mount level line post is the post that's located in the middle of a railing run. It's job is to hold the cable in a line and provide structural support. There is no tensioning hardware necessary for the post.
This answer will depend on how many feet your railing run will span. To be up to code A railing post is required every 4 feet. This means that if you divide your railing span length by 4 you'll have the ALMOST correct amount of posts. Because every project requires TWO end posts. You will subtract this 2 from this number every time. For example 20ft / 4ft = 5, 5 - 2 end posts = 3 line posts.
The top of your mounting plate is designed to sit 1 3/8" under the top of your mounting surface, or deck surface. Each plate is 6" tall, so you will need at least 8" of fascia board.
Viewrail's express post system is excluded from the Viewrail Coastal Products Warranty Program. Stainless and Aluminum make contact in a salty environment a galvanic reaction occurs accelerating corrosion. Because of this, Viewrail has created a coastal specific solution which provides a long-lasting and low maintenance railing system for coasts.
For more information on this product line contact our sales team via the quote or contact us directly by phone.
