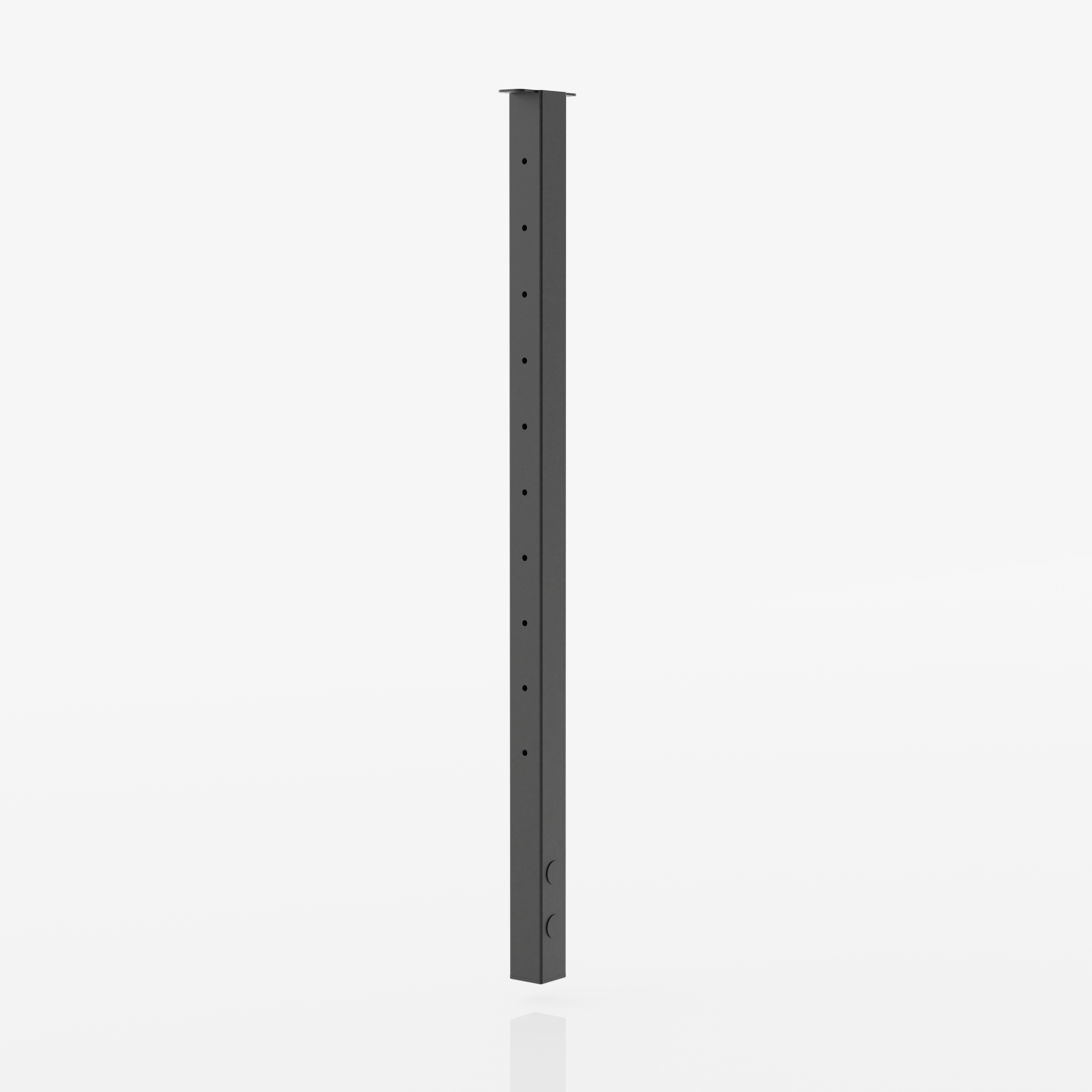

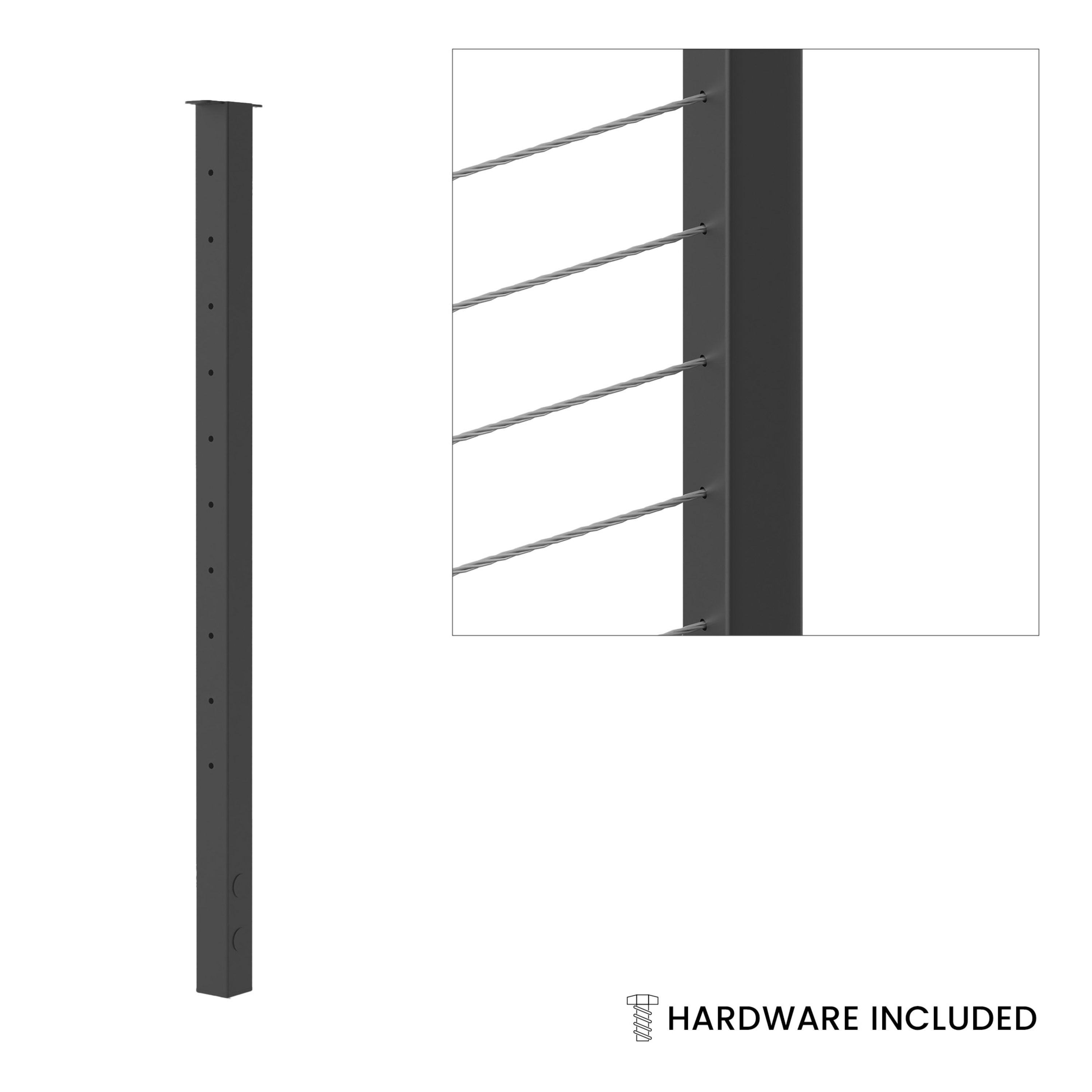

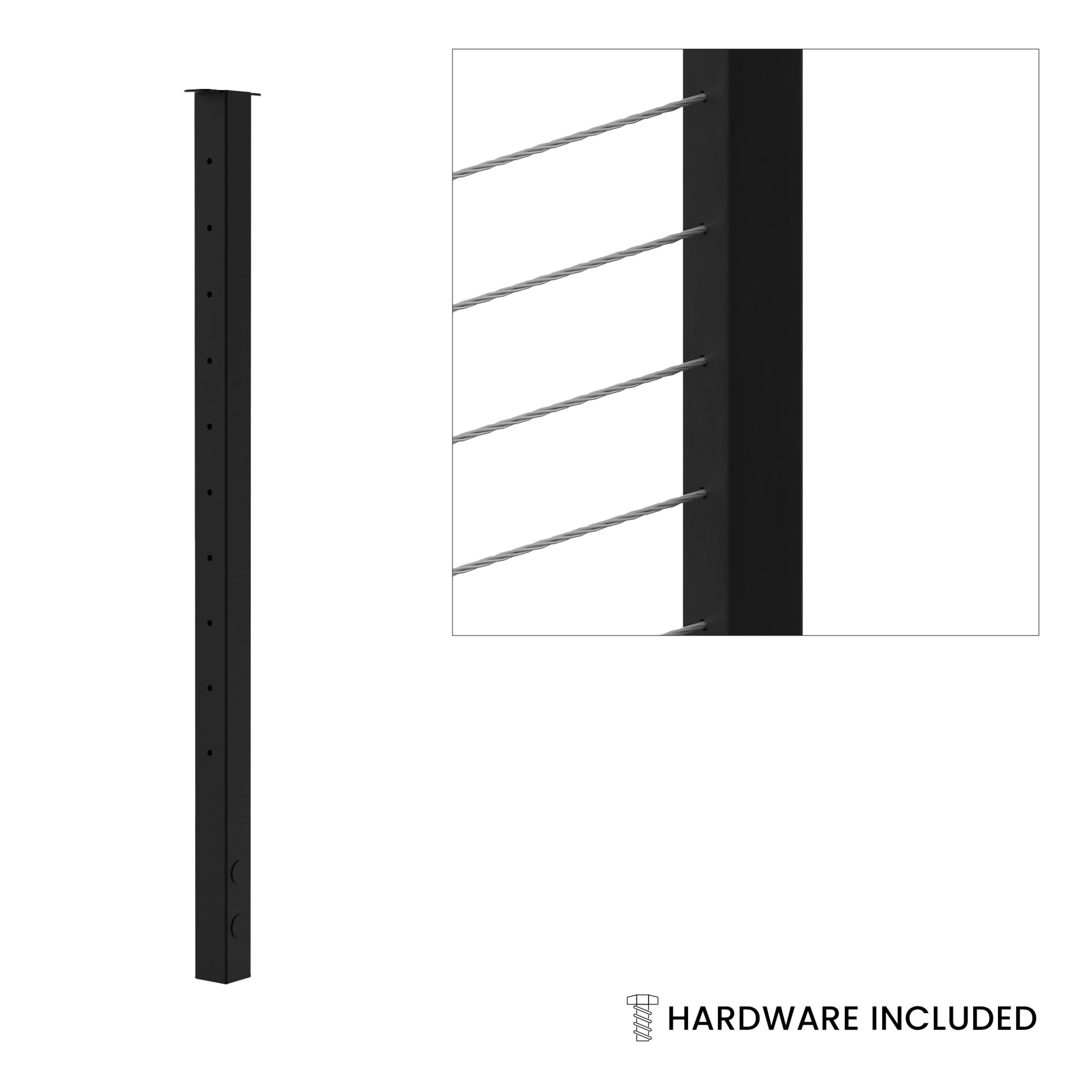

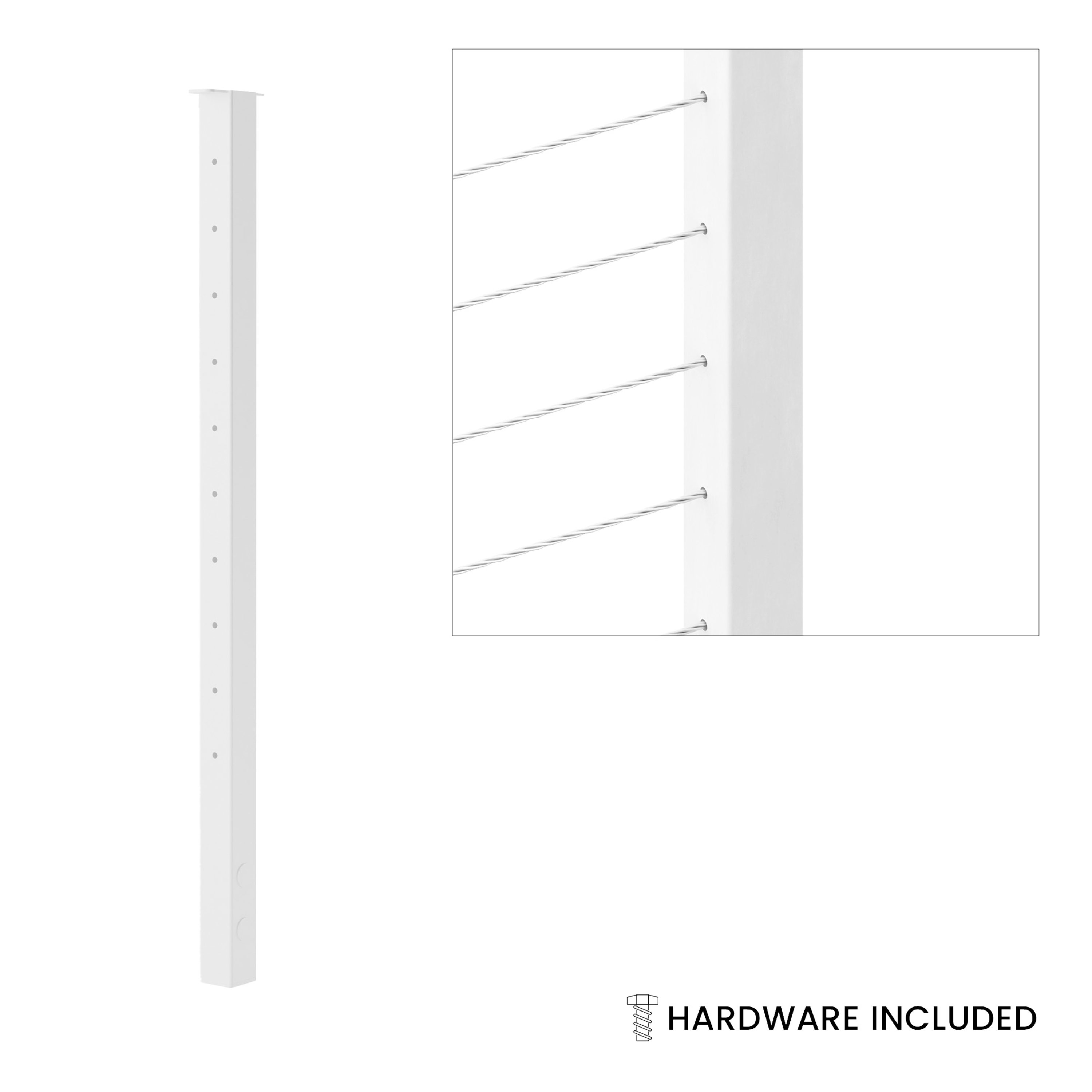

The Express Side Mount Level End Post anchors the ends of straight, fascia-mounted Express cable-rail runs.
Pre-drilled on two faces and engineered to bolt directly to properly blocked fascia boards, it delivers a clean sightline without deck-top obstructions. Pair each end post with a matching sidemount line or corner posts to complete your system. Ships fast from Goshen, Indiana, typically in 1 – 3 business days.
This product is backed by Viewrail’s 10-year structural / 5–10-year finish warranty (excludes coastal regions).
HIGHLIGHTS
All-in-one kit — post, mounting plate cover, fasteners & fittings included; nothing extra to buy.
Express-system ready — pairs with 1/8 in. Express level tension & anchor kits for easy cable termination.
Quick turnaround — leaves Goshen, IN in about 3 days so projects stay on schedule.
Pre-drilled accuracy — 10 (36 in.) or 12 (42 in.) holes keep cables perfectly level on 3.125 in. centers.
Lightweight strength — powder-coated aluminum is 80 % lighter than steel yet meets the same structural loads.
ICC-certified safety — compliant with ICC-ESR-4798 when installed per report. Made in the USA — manufactured and finished in Goshen, Indiana.
WHAT’S IN THE BOX
Express Side Mount Level End Post (pre-drilled, fascia-mount plate attached)
Matte-finish plate cover (hides mounting hardware)
3½-in. stainless structural screws — 4-pack, ready for wood or concrete blocking
Composite leveling shims — 2-pack for quick plumb adjustment
Flat-top handrail bracket with (2) ¼-20 × ½ in. Phillips flat-head screws
10-pack Express Level End cable fittings (⅛ in.) for tensioning and anchoring cable runs
Black aluminum pop rivets — 6 for securing the bracket cover
Note: The mounting plate’s top edge sits 1 ⅜ in. below deck-surface height; plate is 6 in. tall — ensure at least 8 in. of fascia depth for a code-compliant install.
No reviews, Log In and be the first one to leave a comment
Share your opinion with other buyers.
The side mount level end post is the post that combines with the angle tension kit. This posts' job is to anchor the cable and be the final post in the railing run.
The top of your mounting plate is designed to sit 1 3/8" under the top of your mounting surface, or deck surface. Each plate is 6" tall, so you will need at least 8" of fascia board.
There is no current support for level posts to be connected to stair posts. If you would like to have both a stair & level system contact our team for our custom solutions or purchase a stair & level run separately.
Viewrail's express post system is excluded from the Viewrail Warranty Program. Stainless and Aluminum make contact in a salty environment a galvanic reaction occurs accelerating corrosion. Because of this, Viewrail has created a coastal specific solution which provides a long-lasting and low maintenance railing system for coasts.
For more information on this product line contact our sales team via the quote or contact us directly by phone.
