Express White - Sidemount - Level Line Post Package - 36"

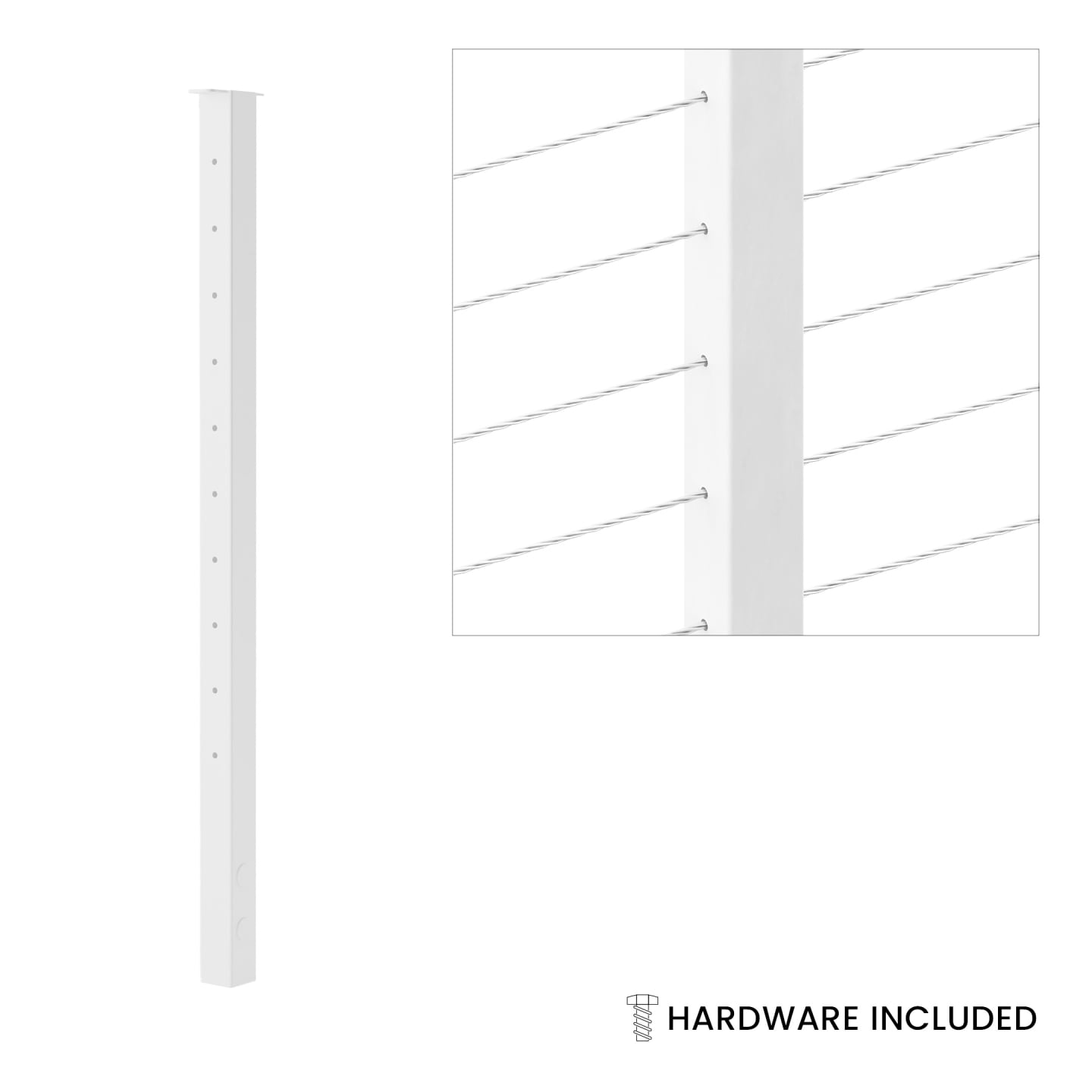

The side mount level line post is the post that's located in the middle of a railing run. It's job is to hold the cable in a line and provide structural support. There is no tensioning hardware necessary for the post.

This answer will depend on how many feet your railing run will span. To be up to code A railing post is required every 4 feet. This means that if you divide your railing span length by 4 you'll have the ALMOST correct amount of posts. Because every project requires TWO end posts. You will subtract this 2 from this number every time. For example 20ft / 4ft = 5, 5 - 2 end posts = 3 line posts.

The top of your mounting plate is designed to sit 1 3/8" under the top of your mounting surface, or deck surface. Each plate is 6" tall, so you will need at least 8" of fascia board.

Viewrail's express post system is excluded from the Viewrail Coastal Products Warranty Program. Stainless and Aluminum make contact in a salty environment a galvanic reaction occurs accelerating corrosion. Because of this, Viewrail has created a coastal specific solution which provides a long-lasting and low maintenance railing system for coasts.

For more information on this product line contact our sales team via the quote or contact us directly by phone.
