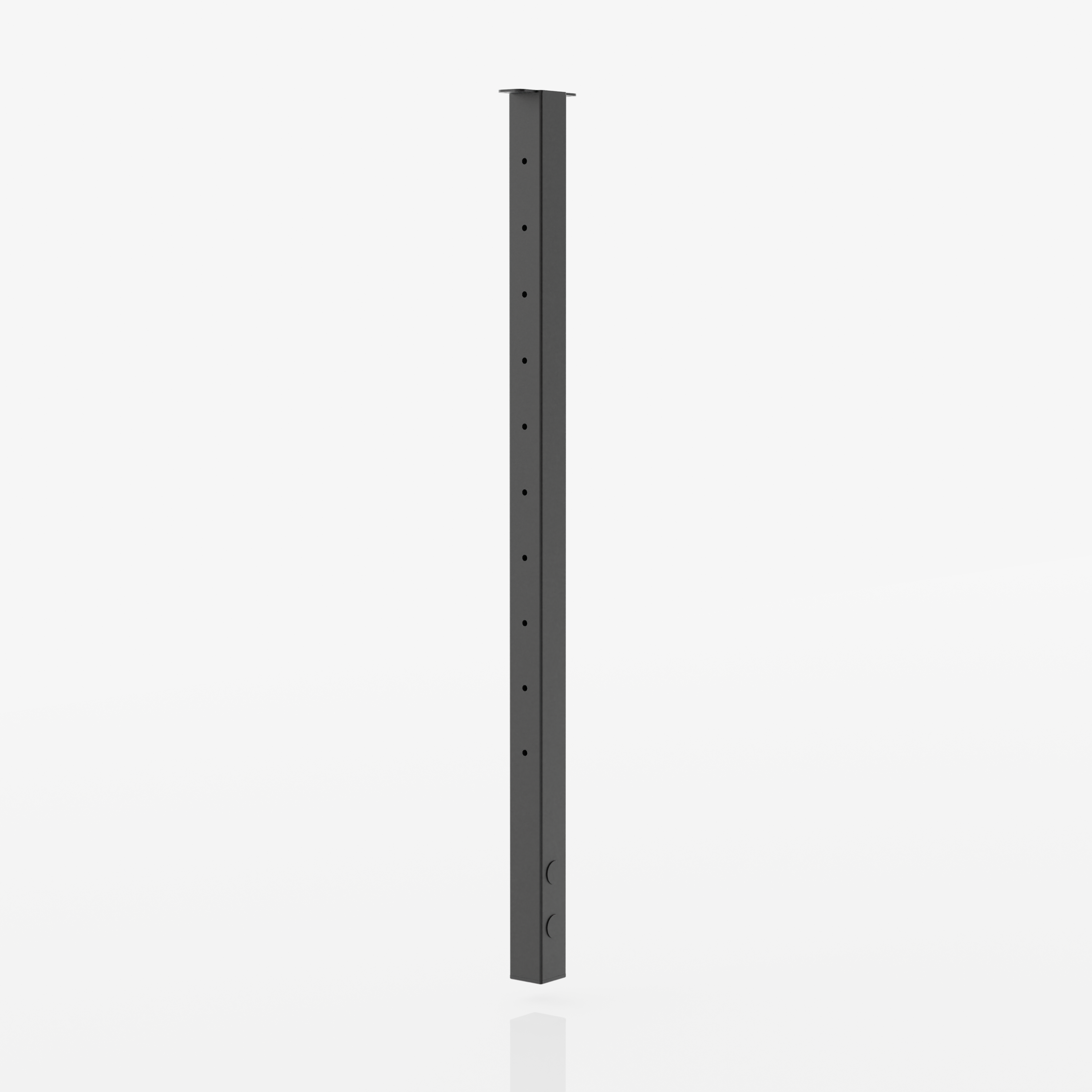

Express Side Mount Level Line Post

The Express Sidemount Level Line Post is the mid-span support for fascia-mounted Express cable-rail runs.

Pre-drilled on two faces, it bolts directly to properly blocked fascia boards and keeps cables perfectly level — no field drilling, bending, or tension hardware required. Install one line post every 4 ft. between two end posts (or corner posts) to meet code and maintain a rigid, open-view railing. Ships fast from Goshen, Indiana, usually in 1–3 business days.

This product is backed by Viewrail’s 10-year structural / 5–10-year finish warranty (excluding coastal regions).

HIGHLIGHTS

All-in-one kit — post, plate cover, fasteners & bracket included; nothing extra to buy.

Express-system ready — integrates with 1/8 in. Express tension and anchor kits

Quick turnaround — leaves Goshen, IN in about 3 days to keep jobs on schedule.

Pre-drilled accuracy — 10 (36 in.) or 12 (42 in.) holes align 1/8 in. cables on 3.125 in. centers.

Lightweight strength — powder-coated aluminum is 80 % lighter than steel yet meets the same structural loads.

ICC-certified safety — compliant with ICC-ESR-4798 when installed per report.

Made in the USA — manufactured and finished in Goshen, Indiana.

WHAT’S IN THE BOX

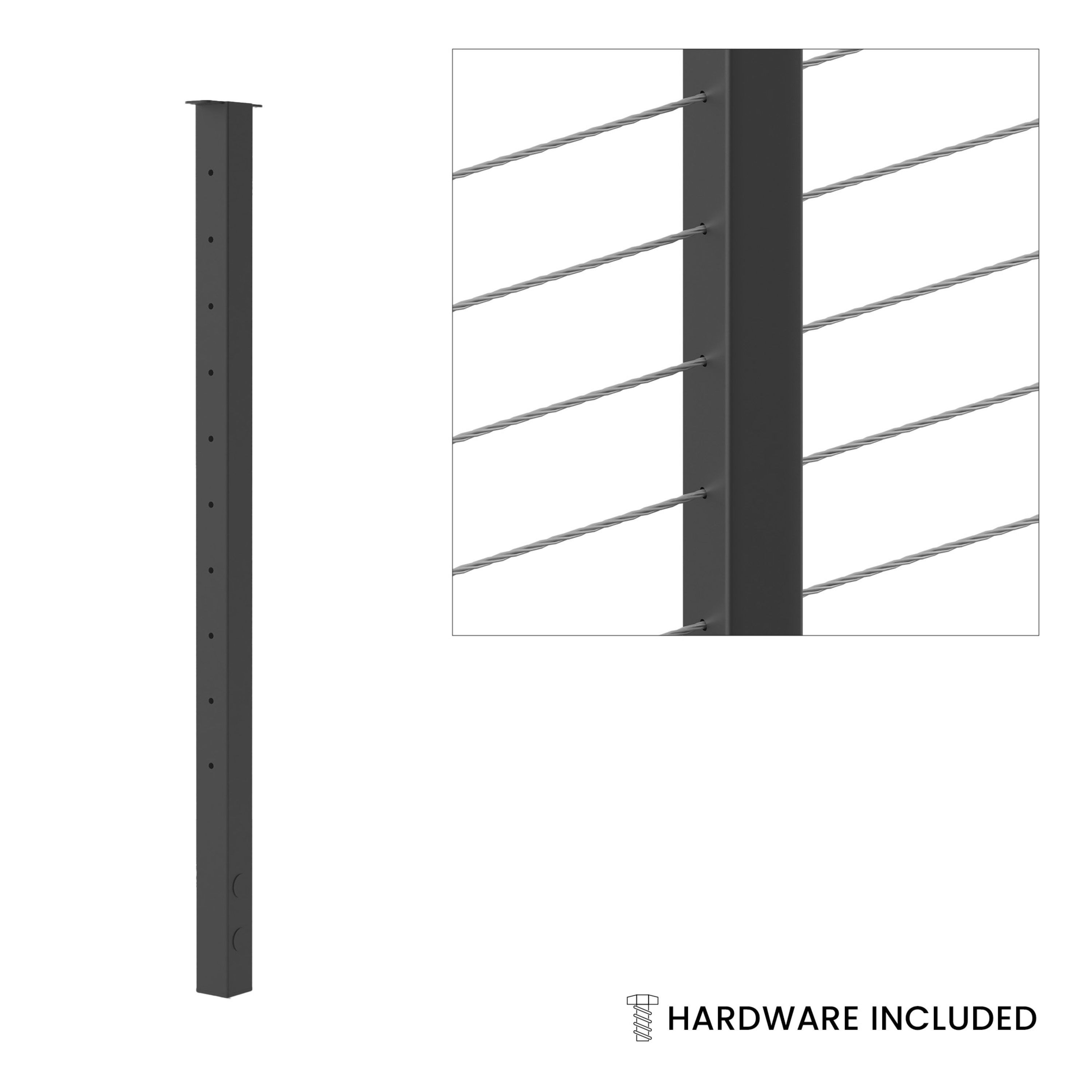

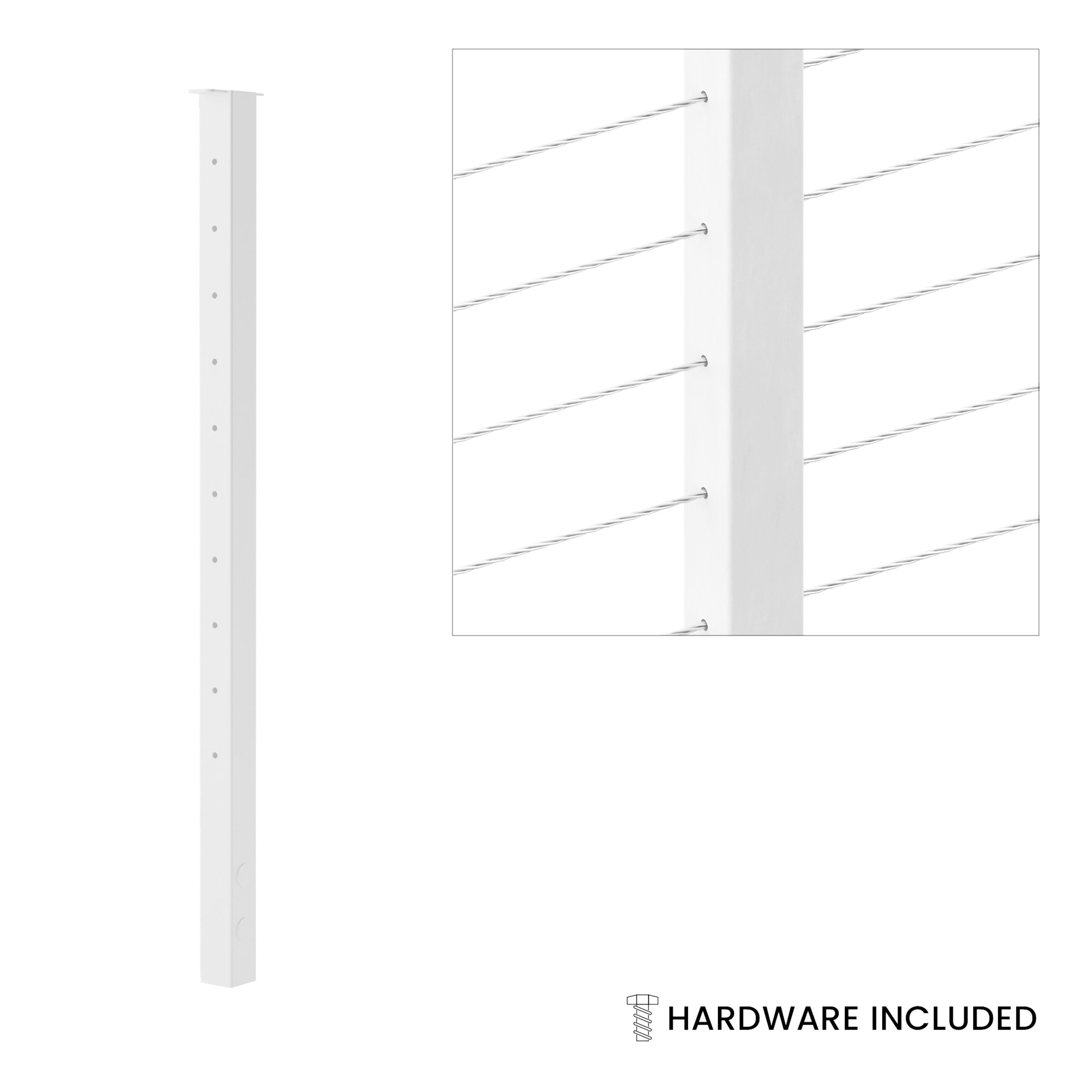

• Express Sidemount Level Line Post (pre-drilled, fascia-mount plate attached)

• Matte-finish plate cover (standard height)

• 3 ½-in. stainless structural screws — 4-pack, wood/concrete-anchor ready

• Composite leveling shims — 2-pack for quick plumb adjustment

• Flat-top handrail bracket with (2) ¼-20 × ½ in. Phillips flat-head screws

• Black aluminum pop rivets — 6 for securing the bracket cover

Note: Line posts do not require cable-end fittings—the cable passes straight through. The mounting plate’s top edge sits 1 ⅜ in. below deck-surface height; plate height is 6 in., so ensure at least 8 in. of fascia depth for a code-compliant install.
